> Times microwave lmr-400 cable 75 ft pl-259 uhf vhf coax

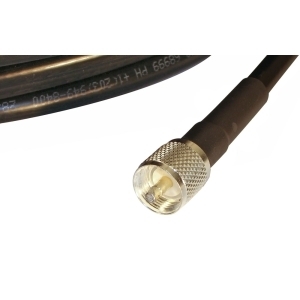

Times microwave lmr-400 cable 75 ft pl-259 uhf vhf coax
LMR-400 Ultra Low Loss Cable for CB, Ham, Scanner and Antenna Connections
Is the cable you are looking at Described as "Compare to" "Equavilent to""Replacement for" "Same as" or even "Like" LMR-400 ? This is common with poor quality cable made in Mainland China or some other lesser known locations. 1/2 (.405) inch Cable is perfect for runs when you don't want to loose signal strength but it isn't cheap, so please choose a product that will last for 20+ years and give you the service you require.
Need another length? Just Ask!
Listings for SMA/BNC/N/etc HERE
1 x PL-259 -Series connector - male
LMR400 Ultra Low Loss - transmission line
Transmission Line - Connects Access Points, Routers and Radio transmitters to Antenna
Waterproof connector installation
We have many listings for cable sets with different connector configurations. We will also professionally replace connections as needed with high quality SMA, BNC, RP-SMA, N, RP-TNC or TNC ends in male or female for $2.99 each to customize cable for your needs.
http://nosparts.net/images/rdu-501.jpg rf-industries
After trial and error we determined the proper conector for our production. RF Industries produces a high quality Silver connector that solders easily using silver solder and still manages to be afordable. Quality control has proven to be excellent and they deliver solid signals with minimal loss. Full details are here
Connector Type PL-259 UHF Male:
Silver plated body for best conectivity
Cable should be in "like new" condition, teeth marks/burns/slices etc. are not acceptable. Please don't run it up a tower and scrape/fray it then change your mind. Run all tests while still coiled.
If we have installed custom connectors we will not refund the price of the new connector we installed for you.
If you have installed custom connectors we will not refund what you paid for them.
You need to be able to print out the return label we will send you or let us fax one if you don't own a printer.
Try to be as fair to us as we are to you. As you can see this cable lists for many times what we are selling it for.
We produce hundreds of cable combinations. Please click here to tale a look!
More Info for Folks who like to do their homework!
Liberal borrowing from Wikipedia
This is Top Quality LMR400 50 Ohm Cable. All common Radio Frequency (RF) devices CB, Ham, WiFi, Packet Radio, etc. are to be used with 50 Ohm cables and connectors. 75 Ohm cables and connectors are designed for low frequency signals like Video or Cable TV and are unsuitable for most all RF installations.
In high quality cable the dimensions and spacing of the conductors are uniform. Any abrupt change in the spacing of the two conductors along the cable tends to reflect radio frequency power back toward the source, causing a condition called standing waves. This acts as a bottleneck, reducing the amount and quality of the transmitted power. To hold the shield at a uniform distance from the central conductor, the space between the two is filled with a plastic dielectric designed to maintain the proper spacing between conductor and shielding to assure maximum signal transmission and lowest loss.
LMR-400 cable is designed for outdoor applications, can be direct buried, and the outer jacket resists ultraviolet light and oxidation. There is no environmental restriction on use for indoor installations.
Our LMR400 cable is the FR version for indoor/outdoor installs certified as fire resistant as required by the Pennsylvania Bureau of Mines. It has all the UV protection of standard LMR with a higher flash point and non-halon certification. Times Microwave developed the variant for industrial applications wanting to run continuous cable runs indoors, underground and between structures while meeting all OSHA and PBM standards.
