Rodless air cylinder, 40MM bore x 1200MM stroke, ckd
CKD MODEL #2RB2-LB-40B-1200-M2WV3-D
PORTS, G1/4, THE BRAKE PORT IS G1/8

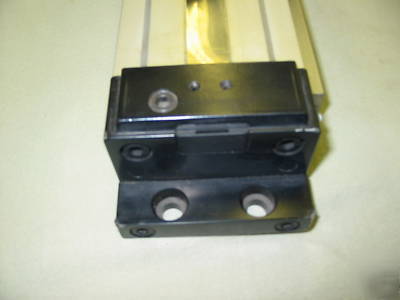

MOUNTING, THERE ARE FOOT MOUNTS ON BOTH ENDS, CAN ALSO BE BOLTED FROM THE BOTTOM

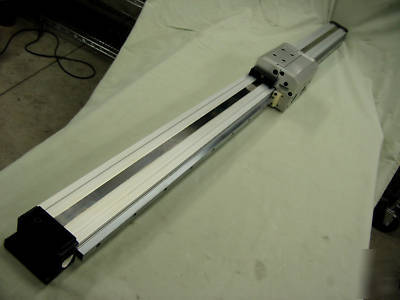

DIMENSIONS, OVER ALL LENGTH 60", BOTTOM TO TOP OF MOVING BLOCK 3 3/4", WIDTH 4 7/8"

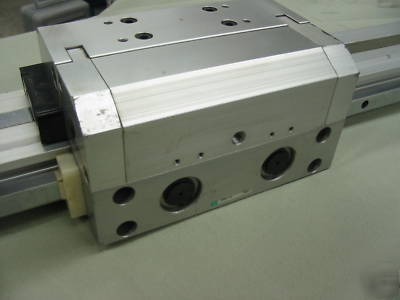

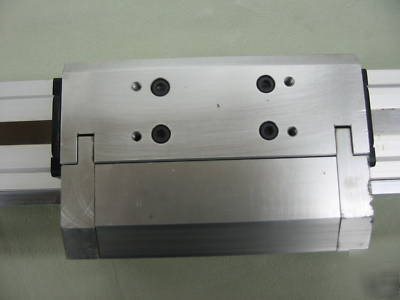

THE MOUNTING SURFACE ON THE MOVING BLOCK IS 2 1/8" WIDE X 7 1/8" LONG, IT HAS 4 - M6X1.0 THREADED HOLES IN IT
THIS CYLINDER IS EQUIPPED WITH A BRAKE, WHEN AIR PRESSURE IS APPLIED THE BRAKE RELEASES, THE BRAKE CAN BE MANUALLY RELEASED WITH 2 SCREWS
MORE INFORMATION CAN BE HAD AT THE CKD WEB SITE, SEARCH THERE SITE FOR SRB2 AND IT WILL TAKE YOU TO A PDF WITH ALL THE INFO.
I DO NOT HAVE THE SWITCHES THAT CAME WITH IT BECAUSE THEY HAD BEEN DAMAGED, THE CKD SWITCH # WAS M2WV DC12/24V
THIS CYLINDER HAS BEEN ON THE SHELF A WHILE, IT HAS A FEW SCRATCHES ON IT BUT IT HAS NOT BEEN USED.
