Fagor 3-axis digital readout for bridgeport mill, 9X42
Fagor Extreme01 is a 3-axis mill DRO for travel lengths of 12"x30"x6". If you need different size scales, please contact us directly.

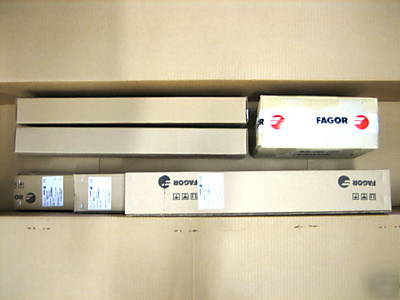

***This is a complete system for a Bridgeport milling machine with 9"x42" table. The third axis is for the quill.
* A 3-axis Digital Readout (DRO) with 5 and 10 m. resolution (0.0002" and 0.0005"). (model number 30i-M UL)
* One 12" scale for the cross slide (X) with 10 m./m. ( 0.00012"/ft.) accuracy. (model number MKT-32)
* One 30" scale for the longitudinal axis (Z) with 10 m./m. ( 0.00012"/ft.) accuracy. (model number MKT-77)
* One 6" scale for the longitudinal axis (Z) with 10 m./m. ( 0.00012"/ft.) accuracy. (model number MKT-17)
* Brackets and screws to mount the scales (a mill and a quill mounting kits)

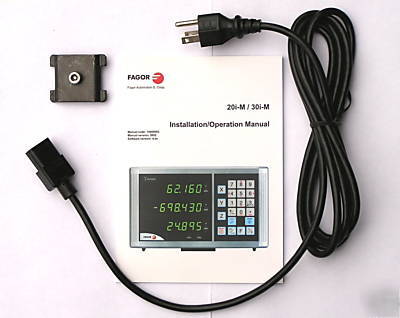

* Installation and Operating manual.

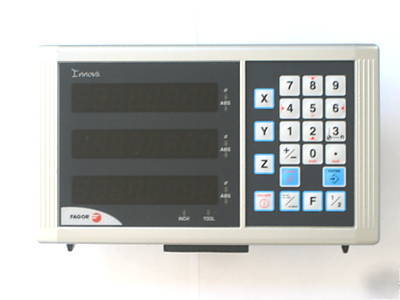

* 3-axis DRO with bright 8-segment LED
* With "Easy setup" feature for assisted system installation
* In tabletop and built-in (add "B" to the model) versions
* Robust body with IP54 protection
* Guaranteed precision and repeatability
* Linear and multi-point compensation
* Up to 20 part references (datum points), with indicator display
* Incremental and distance-coded reference marks
* Bolt-hole drilling calculation
* Linear drilling calculation
* Radius or diameter display
* Preset and zero setting of the axes
* Fine/coarse axis resolution
* Absolute / Incremental measurement
* Easy software update through USB adapter
* Alarms for excessive feed rate and travel limit overrun
