20 awg sp copper 7 strand teflon ptfe wire 40 ft yellow

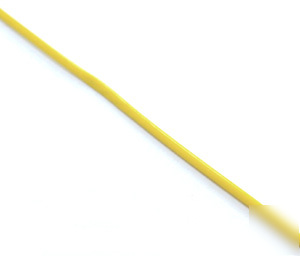

20 AWG SP Copper 7 Strand Teflon PTFE Wire 40 ft Yellow
7 stranded silver plated copper 150V Extruded PTFE Insulation Wire
Thin-walled extruded PTFE (Polytetfafluoroethylene) insulation for weight and space savings. The very thin wall insulation of these wires restrict their usage to low-voltage applications.
Voltage Rating: Not specified by UL; 150 for CSA.
Temp Rating: UL 1212 Rated: 80 C; UL 1213 Rated: 150 C; CSA Rated: 200 C
Conductor Diameter in inches: 0.038" (0.965mm)
Max Resistance @ 20 C: 9.56 ohms/1000ft; 31.4 ohms/KM
Insulation: Extruded PTFE, 0.008" (.2mm) wall thickness
Insulation Diameter in inches: 0.058" (1.47mm)
Purchase price is for 40 ft of wire
West Florida Components Inventory number: W003
