1 mohm 1M ohm 1MOHM 1W hv non-inductive resistors 8PCS

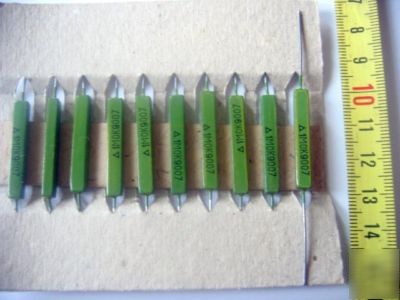

1 Mohm 1M ohm 1Mohm 1W TVO-1 non-inductive Resistors
These are 1 Mohm 1W, +/-10%, 500V/1200V Non-inductive resistors. Made in Russia (USSR).
Working voltage: 500V AC or DC and up to 1200V in pulse circuits.
Ambient Temperature range: from -60 to +155 *C (degrees Celsius)
These are VERY tough and robust resistors. Their base is made of almost bulletproof material (really !!) and they can withstand hits of 500-1500g and still work fine. Practically they can't be broken using any kind of hand tools. These were VERY OFTEN USED in Russian MILITARY devices.
Currently this type of resistors is used for Audio load balancing, dummy-load, curent control. These non-inductive resistors are applied on HF and have very small spurious inductance. Great values of rated power allow to use them as linear loading, and also in anode circuits and in RC-filters of powerful rectifiers. Very exact and stable parameters.
Size (Length x Width x Height) : 29x4x3mm (1.14x0.16x0.12 inch)
The price is for 8 (EIGHT) pieces.
