Mbm isp fc-10 collator stitchfold bookletmaker trimmer

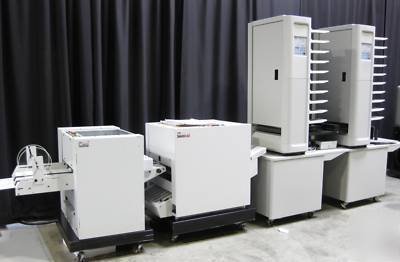

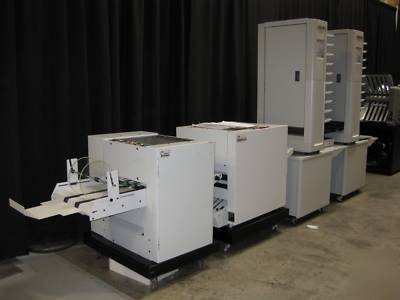

Horizon Collator/BookletMaker VAC-100 (20-Bin)+SPF FC-200A
This is a 2007 current model system that is in very good condition and sells new for over $37k. Save $12k and purchase this system today.
When comparing this machine to lesser priced units on the web, please consider that PFS is an authorized MBM and Uchida ISP dealer and our trained and certified technicians have gone completely through this machinery to guarantee trouble-free performance for many years to come. If you require crating, transportation, installation, training, etc. please contact us for a quote. This is our business and we know how to do it right the first time. Thank you!!!
Installation, training and extended warranties is available, contact us for details.
For more information, visit the manufacturer s web site:
http:// /finishproduct.php?indID=179_5_f
http:// /finishproduct.php?indID=183_4_f

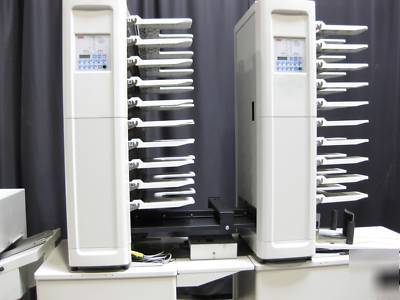

* AUTOMATIC 20-BIN FRICTION COLLATING SYSTEM
collates variety of paper stocks and weights at speeds up to 3,600 sets per hour*
* collator units can be used in tandem or separately while connected
* touch-button control panel with LED 4 digit counter simplifies set-up and operation
* programming modes include preset batch, insertion, and an alternate bin mode for continuous production
* adjustable stacking table for straight or criss-cross stacking
* self-centering feed guides eliminate the need to reposition on-line bookletmakers for different size stock
* adjustable feed and separator pressures on each bin
* extra large, detachable feed trays
* optional bases with casters, and high capacity stacker, necessary when using system off-line
Dimensions (D x W x H): 27 5/8" x 86 1/2" x 41 1/4" (90 1/2" W, 63" H with bases)
3 3/4" x 5 7/8" to 12 7/8" x 18 1/2"
patented, ISP wire-fed stitching system provides lower operating costs than bookletmakers using pre-formed staples
* produces booklets up to 100 pages*
* low maintenance jogs, stitches, and folds up to 65,000 booklets without replacing wire spools
* runs on-line with a variety of collators (interface is included) including the MBM FC 10
* easy to use, push-button controls with 6 digit counter
* moveable, magnetic stitching heads
* one-step threading for quick and easy set-up
* knife fold with dual fold rollers for crisp, consistent folds
* transparent safety access covers machine will not operate with covers in open position
* includes back jog, and stand with casters
* optional activated clinch, and on-line corner/side stitch gate
Dimensions (D x W x H): 21" x 52" x 24 1/2"

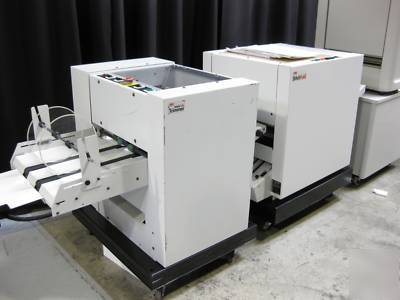

FACE TRIMMER FOR STITCHFOLD BOOKLETMAKER
operates on-line with StitchFold bookletmaker
* trims booklets up to 100 pages*
* transparent safety access cover machine will not operate with cover in open position
Dimensions (D x W x H): 24 1/4" x 48 1/2" x 24"
4 3/4" x 8 1/2" to 12 3/4" x 18 1/2"
4 3/4" x 8 3/4" to 12 11/16" x 18 1/4"
