Nikon smz-u stereoscopic zoom stereozoom microscope

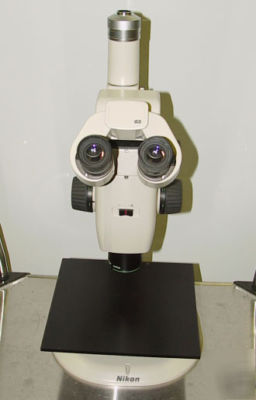

Nikon SMZ-U Stereoscopic Zoom Stereozoom Microscope
In developing the SMZ-U, Nikon aimed to produce a stereo optical system that could overcome the limitations of the parallel beam path stereomicroscope, while still delivering high quality results. Higher resolution and a wider zoom range guaranteed high quality images at any magnification, while maintaining the natural shape and color of the specimen.
A wide variety of accessories are available for the microscope, which allow the user to customize the instrument for different applications. One of the first ergonomically friendly microscopes, the SMZ-U had a low eye-level design feature that reduces fatigue over long hours of observation. A variable iris diaphragm, conveniently positioned on the front of the body tube, offered flexible control for depth of focus. In addition, a beam splitter is strategically positioned for attachment of a photographic system or TV camera with simultaneous viewing from each port.
The SMZ-U zoom produced a ratio of 10:1, covering a range of 0.75x to 7.5x, and reducing the need for frequent lens changes. Interchangeable objective lenses, offered in a magnification range of 0.5x to 2x, ensured wider magnification ranges and long working distances.
This unit has the following configuration:
* Total System Magnification Range: 14 to 140x
* Two (2) SMZ-U UW10x A/24 Optics (10x Magnification)
* One (1) Binocular Optic Mount (1.25x Magnification)
* One (1) Dual Port Beam Splitter
* One (1) Nikon TV Lens C-0.45x Interface
* One (1) Nikon SMZ-U 1:10 Body (0.75 to 7.5x Magnification)
* One (1) Nikon ED (Extra-low Dispersion) Plan 1.5x FL Objective (1.5x Magnification)
* One (1) Nikon Stage +70 to -70 in 1 mm ticks to measure Left to Right Movement
