7" dia x 72" l acrison stainless screw feeder 140S-s

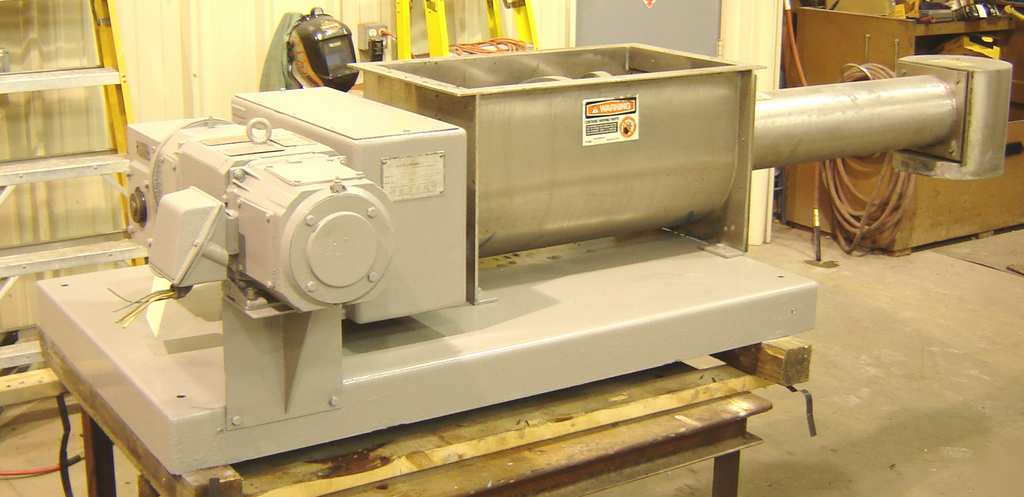

7" DIA X 72" L ACRISON STAINLESS SCREW FEEDER 140S-S
MODEL 140S-S. S/N 9603-01. STAINLESS STEEL CONSTRUCTION. 7" DIAMETER SCREW WITH 15" DIA. HEAVY DUTY OVERWRAP IN FEED TROUGH SECTION. CENTER OF FEED TO CENTER OF DISCHARGE = 4'-9". INLET TROUGH MEASURES 16.5" X 29.5" INSIDE. 12" DIA. OUTLET. OVERALL LENGTH = 9'-2". DRIVEN BY 3 HP RELIANCE ELECTRIC DC MOTOR, 1750 RPM, 180 VOLTS, 213C FRAME SIZE. ACRISON RIGHT ANGLE GEAR REDUCER, MODEL FHMQ 1325, 15:1 RATIO. NO CONTROLLER.
