Mity vac mty 7300 pneumativac

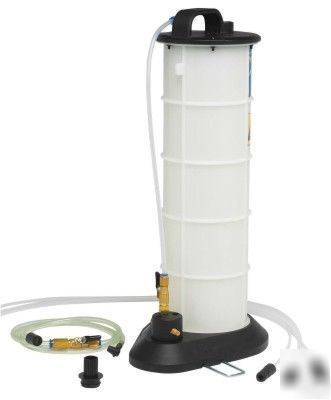

PneumatiVac (Replaces 07300) Operates on compressed air to create a powerful venturi vacuum for draining fluids from tanks and reservoirs. Compressed air hose attaches at base for stability. Includes accessories for draining engine oil or transmission fluid directly through the dipstick tubes. Also includes brake/clutch bleeding kit (Model No. 07205) for vacuum bleeding hydraulic brake and clutch systems. Specifications Sheet Features: Includes: Operates on compressed air Integrated 2.3 gallon (8.8 liter) capacity reservoir Large base with foot stabilizer Durable, chemical resistant polyethylene construction Independent air shut-off valve Quiet, muffled exhaust Automatic overflow prevention Quick-drain pour spout Fluid evacuator 0.23" OD x 5' long (5.7 mm OD x 1.5 m long) dipstick tube 0.26" OD x 5' long (6.6 mm OD x 1.5 m long) dipstick tube 0.41" OD x 5' long (10 mm OD x 1.5 m long) main evacuation tube Brake/clutch bleeding adapter kit (Model No. 07205) Tube adapters User manual (English/French/Spanish) Specifications: Reservoir capacity: Max. operating temperature: Compressed air inlet size: Packaged weight: Size: 2.3 gallons (8.8 liters) 175 F (80 C) 1/4" NPT 7.5 lbs (3.4 kg) 24" tall x 12.4" wide x 9.3" deep (610 mm tall x 315 mm wide x 235 mm deep)
