> New edmunds cag qcm computer aided gaging system in box
New edmunds cag qcm computer aided gaging system in box
EDMUNDS GAGES INTRODUCES NEW COMPACT QUALITY CONTROL AMPLIFIER FOR MULTI-DIMENSIONAL MEASUREMENT
CAGQCM displays measurement data - in real time - in a variety of numerical and graphical formats such as X-bar and R charts, bar graphs, histograms, scatter charts, and more. Detailed statistical process control information can be gleaned about part conformance, including range, mean, and deviation from nominal. Its programming and operational software is menu-driven, prompting users step-by-step through the procedures. Setup data may be stored for many part programs and password protected, if desired, to avoid inadvertent changes. Measurement results may be downloaded to a PC network via an ethernet port.

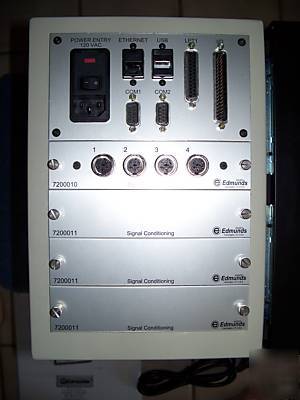

The new CAGQCM is a compact size, about 11" high x 16" wide x 9" deep. Its cabinet is NEMA-rated for shop floor use. For even greater durability, Edmunds uses a "flash" plug-in memory card to drive the program and store the collected data instead of conventional rotating disk drives which can be unreliable in manufacturing environments. A new generation, 10" flat panel display features low heat emissions for cooler operation. It houses up to 16 inputs, and a separate, stackable unit of the same small size expands the input capacity to 48 inputs or more. The universal 4-channel signal conditioning board can accommodate Edmunds' LVDTs and air-to-electronic inputs with full range choices.
For more information, contact Edmunds Gages, Farmington, Connecticut, (***)677-2813 or visit http:// /products/cagproducts.htm to download an informative brochure.
