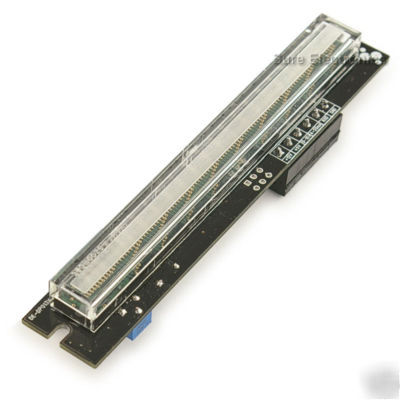

1MM pitch 100-row raster led information board
1mm pitch 100-row raster LED Information Board
10*10 segment LED raster for displaying.
This raster board can be used to measure voltage ranging from 0-10V or 0-5V, current ranging from 4-20mA as well as temperature.
Terminal connector J2 integrates +12V , +5V 0-10V 4-20mA RXD and GND pins on board for easy connection.
Current readout value can be switched by the encoder SW1.
SureRaster1.0 is provided for free as the demo software of this raster board. Please refer to the link address on the webpage.
