T100 vhf/uhf vector antenna impedance analyzer

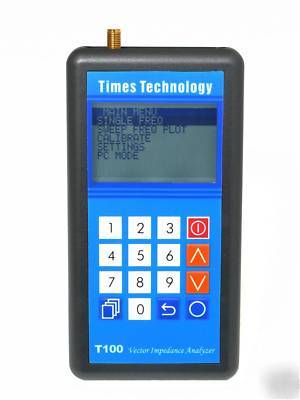

T100 VHF/UHF Vector Antenna Impedance Analyzer
* Open / Short / Load 3-term Calibration
* Able to tell the Sign of Reactance (i.e. can distinguish L and C without guessing!)
* 128 x 64 Graphical LCD with Back Light
* Plots Graphs of SWR / Impedance / Resistance / Reactance / Return Loss / Phase
* USB port for firmware upgrades and PC communications
* PC host software included to control the T100 via USB
Test Port Connector : SMA (Female)
Output Power : > 0dBm (typical)
Harmonics : < -25dBc (typical)
Display : 128 x 64 dots graphical LCD with backlight
Physical Dimensions : 140mm(length) x 68mm(width) x 25mm(thick)
Net Weight : 130 gram (without batteries)
SMA connector for OPEN Calibration: P/N 202112
SMA connector for SHORT Calibration:P/N 132331
SMA connector for LOAD Calibration: P/N 132360
SMA male to BNC female adaptor
User Manual, Software, more photos and videos are available on our web site. Please search for timestechnology T100 on the Internet.
We are the original designer and manufacturer of this analyzer. You are more than welcome to contact us directly if you have any questions.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Australia, Belgium, Canada, Denmark, Finland, France, Germany, Greece, Indonesia, Ireland, Italy, Japan, Korea (South), Luxembourg, Macau, Malaysia, Maldives, Mexico, Nepal, Netherlands, New Zealand (except Islands Territories), Norway, Pakistan, Philippines, Poland, Portugal, Puerto Rico, Russian Federation, Singapore, Spain, Sri Lanka, Sweden, Switzerland, Taiwan, Thailand, Turkey, United Kingdom, United States of America, Vietnam.
Before you make your purchase, we strongly suggest you to check with your local authorities on how much it would be for (import, VAT, etc.) tax, duties, or other charges that may apply, as well as conditions that may result in delays on the delivery, in order to get a better idea of the total cost and delivery time beforehand.
