Adv. auto. tech. lumonics 95-033 laser marking system
(1) USED - ADVANCED AUTOMATION TECHNOLOGIES LUMONICS 95-033 LASER MARKING SYSTEM*

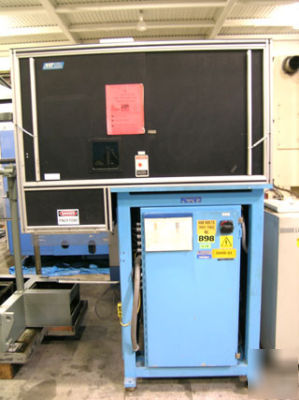

aluminum, and most plastics. The system is manufactured in accordance with NEMA 12 guidelines and consists of two interconnected major modules: An

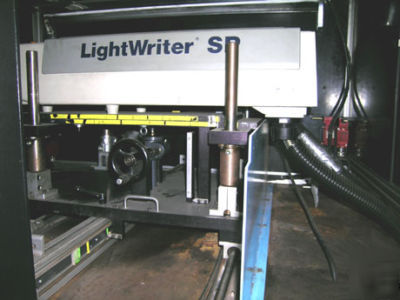

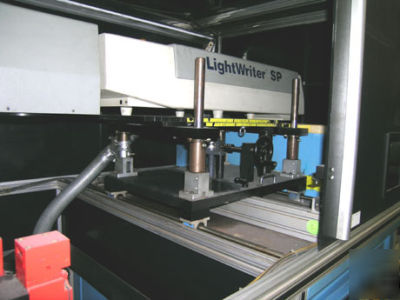

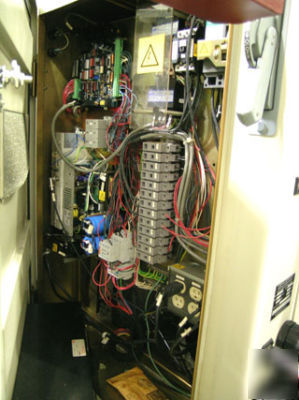

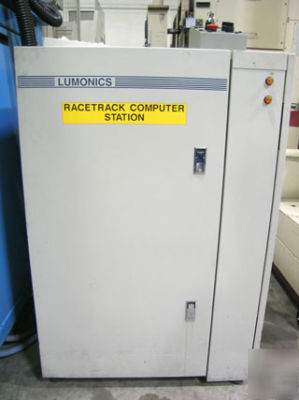

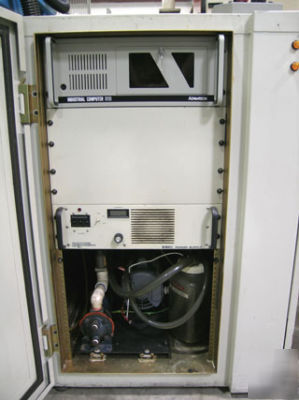

Electronics Cabinet, containing the support systems and a Laser Assembly consisting of a Laser Head and a Marking Head. The Laser Head contains a

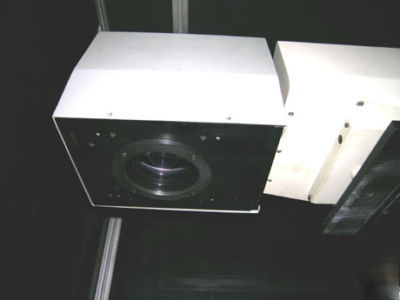

Nd:YAG laser, while the Marking Head which is attached to the Laser Head contains the telescope, optics and steering mirrors.
The LightWriter is a real time marking system which incorporated the latest technology allowing the highest degree of reliability and ease of operation.
The system can either be operated in a stand-alone configuration, or can be controlled directly from a host computer. In the stand-alone mode, all data
entries and marking commands are entered by the operator from the keyboard and monitor located at the user workstation. The exchange and transfer of
information between the operator and the system is carried out through the user interface provided by Lumonics' exclusive software program, SOLO (Simple
Operation, Logical Operation, which runs in the 32-bit 486-DX System Controller under control of the IBM OS/2 operating system. In fully automated
applications, central computers can be interfaced directly to the System Controller via a host communication link, for completely unattended system operation.
Laser Wavelength 1064 nanometer
Q-Switch Mode TEMoo to multimode
Q-Switch Modulation Continuous Wave to 64KHz
Typesetting Resolution - Character Height - Maximum 7.0"
- Character Width - Maximum 7.0"
- Character Spacing - Maximum 3.20"
- Character Spacing - Minimum 0.00"
- Line Spacing - Maximum 3.20"
- Line Spacing - Minimum 0.00"
- Writing Speed - Maximum 80.0"/Sec, Fully Adjustable
- Writing Speed - Minimum .500"/Sec.
Pulse Frequency - Selectable Continuous Wave (CW) - 64KHz
Writing Style Engrave -Constant Velocity Continuous Wave
Character Style Adobe 1 Fonts, Also Fonts
Circular Marking - Maximum 7.0" Diameter
Circular Marking Direction Clockwise or Counterclockwise
Italics - Maximum Angle +/- 60 Degrees
Field Rotation 90 Degree Increments
Text Rotation - 0.1 Degree Increments -359.9 - +359.9
Serialzation - May Include Alpha & Numeric Up to 9 S/N per Marking Job
Step & Repeat - Column and Row Spacing 0.00" - 2.00"
Electrical 480 VAC +/_ 5%, 50/60 Hz, 3 Phase
Approximate Dimensions - Machine 60" L x 48" W x 87" H
- Control 31" L x 30" W x 45" H
