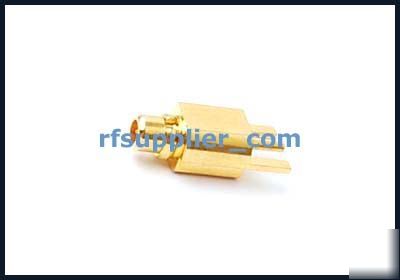

Mmcx male pcb connector straight goldplated
MMCX Male PCB connector straight Goldplated
Temp.range...................... -65 C +165 C
Impedanec........................50 75
Frequency Range..................DC 6GHz
Working Voltage..................250V (50 )?170V (75 )
Withstand Voltage................750V (50 )?250V (75 )
Center Contact................... 5m
Outer Contact.................... 2.5m
Insulation resistance............ 1000 m
VSWR Straight.................... 1.15
Right angle...................... 1.25
Durability(mating)............... 500 (cycles)
