Variable electronic dc transformer - 28VDC to 3VDC
Electronic Adjustable Potential Transformer
Adjustable Potential Transformer

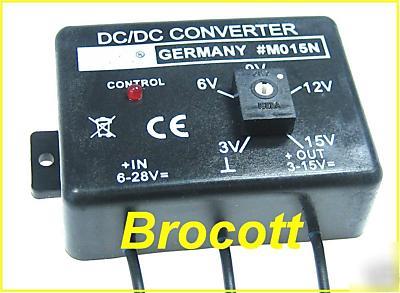

This handy module is probably the most versatile that we stock. A supply of between 6 & 28 Volts can be supplied to the unit, then you can set the desired output voltage of between 3 & 15 Volts via the trim pot adjuster on the front.
Uses include but are not limited to:
Motor Bike Tourers - For the ipod & intercom power supplies etc.
Motor Homes & Caravans - Where a lower voltage is required.
Step down for electronic circuitry
Lorries & Wagons - To step down the 24v to 12v
The input voltage must be at least 3V higher than the required output voltage. The adjusted output voltage is stabilized or short circuit-proof. For operation of appliances with lower voltages at a 12V or 24V car battery or power supplies.
Output voltage adjustable: 3...15VDC (electronically stabilized)
Note: The input voltage must be at least 3V higher than the adjusted output voltage
Max. dissipation: approx. 3W without heat sink, approx. 10W with heat sink (not enclosed)
Dimensions: approx. 59 x 56 x 25 mm
Please be aware that we sell all of our products via other sources too which sometimes affects our stock levels
