New - curtis battery & lcd hour meter 803RB2448BCJ

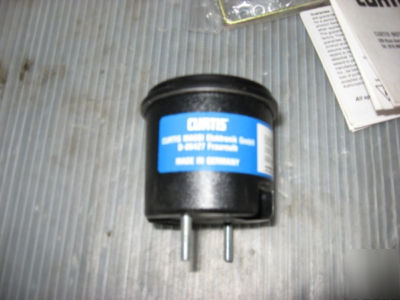

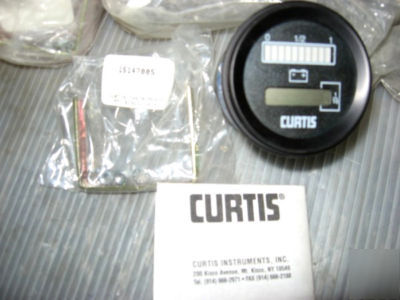

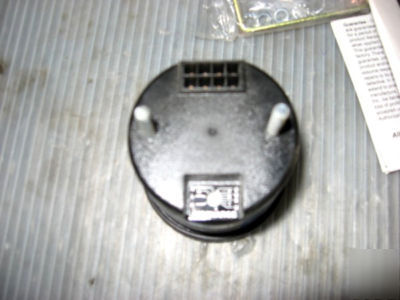

NEW - Curtis Battery & LCD Hour Meter 803RB2448BCJ
* Manufacturer Part Number:803RB2448BCJ2010
Battery Discharge Indicator/Hour Meter with Lift Lockout
Combines in one instrument a completely solid-state battery discharge indicator, an LCD hour meter and lift lockout, housed in a 52 mm case. Indicates state-of-charge in 10-bar LED display. Void of moving parts, this instrument is exceptionally reliable even in severe operating environments. Suitable for all electric vehicles.
Multicolor 10-bar LED displays state of charge (5 green, 3
Flashing red LED signals energy reserve alarm at 70%
Double flashing red LEDs signal empty alarm at 80%
Normally closed relay opens at 80% discharge for lift lockout.
This unique holding relay will only lock out at the end of a lift
Keyswitch activated LED display (Fuel gage electronics are
energized as long as they remain connected to the battery).
Wide range adjustable discharge profile.
Dual reset methods in each gage: Open Circuit Reset for
vehicles that exchange batteries and Charge Tracking Reset
for vehicles whose batteries remain connected to the gage
Monitors use-time throughout the equipment s lifespan.
Records and displays up to 99,999.9 hours on its LCD, rolls
over and continues to count and display.
Hour meter LCD remains on as long as battery is connected.
Stores latest total in EEPROM nonvolatile memory, without
Operates and displays in temperatures from -40 C to +65 C
under harsh conditions of vibration, shock, moisture and dust.
