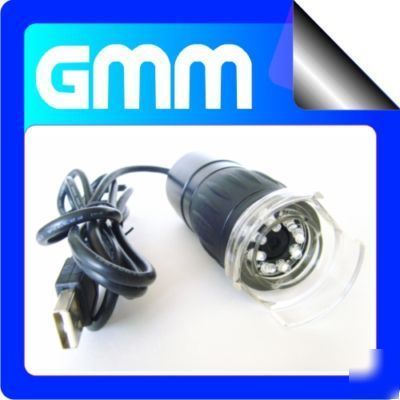

42X 210X usb portable handheld digital microscope 2MP
10X~42X, 210X Handheld USB 2.0MP Digital Microscope
(Product is OEM of BRESSER, Germany)
Picture Taken by Digital Handheld Microscope
The 2.0 MP digital microscope is a hand-held digital magnifier. By connected with a PC through a USB 2.0 port, the images and videos of the specimen are shown on the screen, and captured, edited by the software attached. With the special design of adjustable magnification, the fine target can be found easy in low magnification and its detailed information can be inspected in high magnification. The advanced design in IC project enables microscope run without a driver, just like an insert-plug movable hard-disk. The newly developed software attached supports the working model of video recording in high resolution (2.0MP).
The microscope is an extremely useful tool for parts inspection and precision testing which is widely used in machinery, electronics, printing, commodity inspection, quality control and in areas like textiles industry, security, health, education and family life.
* Sensor Parameter: 1/3" 2.0 Mega Pixels CMOS
* Max. Resolution: 1600 x 1200
* Magnification Ratio: 10X ~ 42X, 210X
* USB Device: USB 2.0, 480 MB/s
* Light Soucse: Built-in 8 LED White Lights
* Frame Rate: 7.5 f/s @ 1280 x 1024
* Preiew Model: 1600 x 1200, 1280x 1024, 1024 x 768, 640 x 480, 320 x 240
* Sensitivity: 1.0 V/lux-sec@550nm
* Spectrum Response: 400nm ~ 1000nm
* Shutter Type: ERS (electronic rolling shutter)
* Dimension: 95mm(H), 35mm(dia.)
* Without a driver to compatibility to Window XP, Vista.
* Operating System: Windows XP, Vista
* Available USB 2.0 Interface
* 1 X CD with driver and Future WinJoe software
This Futrue WinJoe application software makes it easy for you to capture still images and videos directly from this digital microscope. You can edit pictures in your local disc or images captured by this USB 210x 2.0MP digital microscope and even print them.
* Telecom module inspection
* Insect dissection/examination
* Plant dissection/examination
* Collections/Coin Inspection
