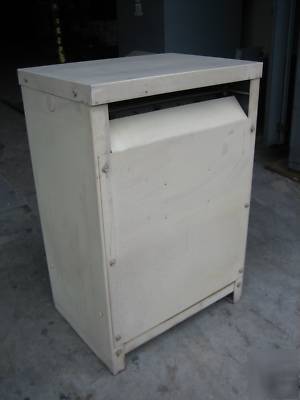

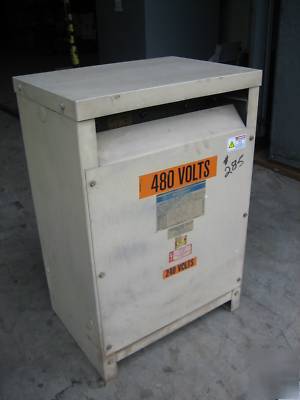

Westinghouse transformer 45KVA 480/240 delta 45 kva 3PH

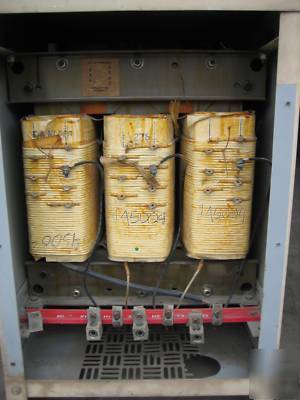

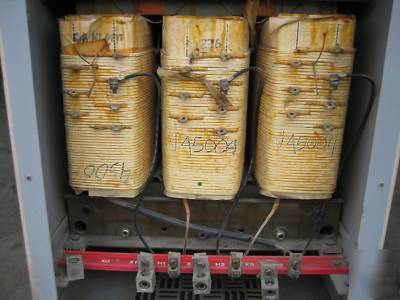

This Transformer is in Good Condition Externally and Great Condition Internally.

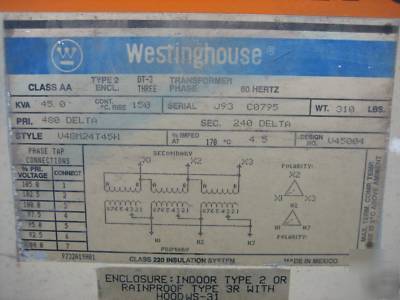

Class AA Type 2 Encl. DT-3 Transformer
C Rise 150 Serial J93 C0795 Wt: 310 Lbs
Primary Volts: 480 Delta Secondary Volts: 240 Delta
Style: V48M24T45H % Imped. at 170 C 4.5 Design No: V45004
Class 220 Insulation System 9732A19H01
20.5" (Width) x 14.5" (Depth) x 30" (Height)
