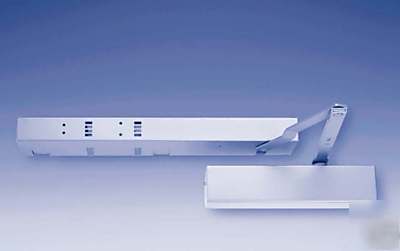

Rixson smok chek electrical closer holder
The SCV product has been around since the mid seventies.The holder (frame portion) is Exactly the same today as it was then.This current closer is the only valid model.The other models will need to have the arm, cover, and closer body replaced.Templating will obviously be different.The current closer and the last model pictured on the bottom of this page are very similar.The difference is the broach on the arm.If the broach is on a diamond, then the closer is current vin-tage.If it is on the square, you will need to replace the closer, cover, and arm.
SMOK-CHEK V is an electromechanical closer-holder combining the functions of a single-point door holder with the provenreliability of Rixson's M2220 Series door closer.SMOK-CHEKV is designed to hold fire/smoke doors open, and release whenactivated by a fire alarm system.SMOK-CHEKV units are listed as automatic closer release devices for use on fire rated/smokedoors.SMOK-CHEKV is available as a fully detectored stand alone unit for buildings not equipped with an alarm system, or as a non-detectored unit in buildings with existing alarm systems.It is recommended for the majority of room and door requirementsincluding cross-corridor and double egress doors, horizontal exit and stairway doors.The modular design of Smok-Chek offers ease of replacement of all major components including the magnet, holder, detectormodule, closer, and arm.
Standard Features Mounts on 2" door frame Dual equal chamber ionization detector modules Available in 24VAC/DC. Low current drawcompatible with any fire alarm system Separate surface closer with multi-size spring Non-handed Mechanical hold open 180 Arms available for deep reveal on push side only Closer has adjustable back check cushioning Sprayed finished available:Aluminum689Dark Bronze690Light Bronze691Gold696 ANSI Grade 1 156.15 2-year limited warranty U.L.listed
