> Agilent hp 355C 12 db .5 watt dc to 1 ghz attenuator

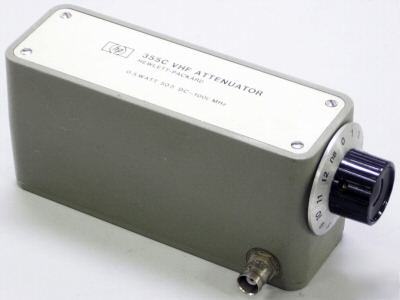

Agilent hp 355C 12 db .5 watt dc to 1 ghz attenuator
The HP 355C DC to 1000 MHz manual step attenuator provides precision step attenuation in 1 dB steps from 0 to 12 dB. Attenuator sections are inserted and removed by cam-actuated microswitches which keep lead lengths short. This design minimizes stray capacitances and inductances, and keeps phase shift to a minimum. The HP 355C is a compact and rugged unit in which the component parts are rigidly positioned and well-shielded so that neither stray pickup nor signal leakage is a problem. Either terminal may be connected as input or output.
* Frequency Range: dc to 1 GHz
* Attenuation Range: 0 to 12 dB
* Connector Type: BNC female
