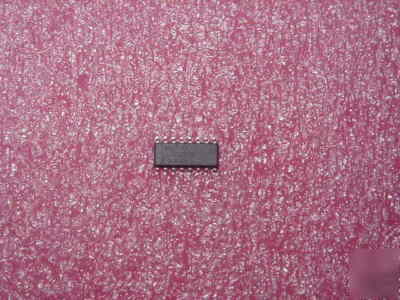

> Qty 10 * 74HC174 74HC174D hex d-type flip-flop smd 16
Qty 10 * 74HC174 74HC174D hex d-type flip-flop smd 16
Six edge-triggered D-type flip-flops
The 74HC/HCT174 are high-speed Si-gate CMOS devicesand are pin compatible with low power Schottky TTL(LSTTL). They are specified in compliance with JEDEC standard no. 7A.The 74HC/HCT174 have six edge-triggered D-typeflip-flops with individual D inputs and Q outputs. Thecommon clock (CP) and master reset (MR) inputs load andreset (clear) all flip-flops simultaneously.The register is fully edge-triggered. The state of each Dinput, one set-up time prior to the LOW-to-HIGH clocktransition, is transferred to the corresponding output of theflip-flop.A LOW level on the MR input forces all outputs LOW,independently of clock or data inputs.The device is useful for applications requiring true outputsonly and clock and master reset inputs that are common to all storage elements.
