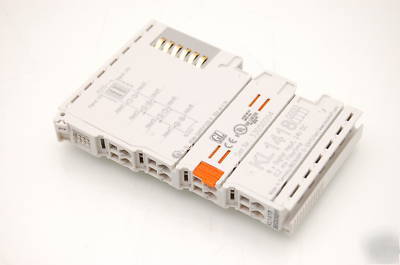

Kollmorgen beckhoff KL1418 8CH digital ipt bus terminal
Beckhoff KL1418 8 Channel Digital Input Bus Terminal
KL1418 | 8-channel digital input terminals 24VDC
The digital input terminals KL1408 and KL1418 (positive switching) and KL1488 and KL1498 (negative switching) acquire the binary control signals from the process level and transmit them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminals contain eight channels which indicate their signal state by means of light emitting diodes. They are particularly suitable for space-saving use in control cabinets. By using the single-ended connection technique, a multi-channel sensor can be connected in the smallest space with a minimum amount of wiring. The power contacts are looped through.
For the KL1408 and KL1418 Bus Terminals, the reference ground for all inputs is the 0V power contact. For the KL1488 and KL1498 Bus Terminals, the reference point for all inputs is the 24 V power contact. These versions have input filters with different speeds.
-3 to +5V (EN 61131-2, type 1/3)
11 to 30V (EN 61131-2, type 3)
For more information and specs, please visit Beckhoff's Website: Digital Input: KL14x8.
