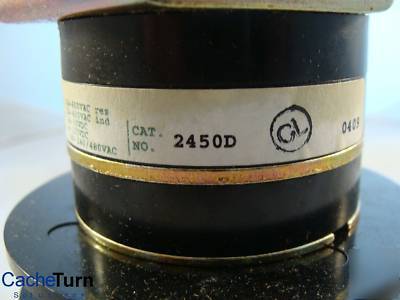

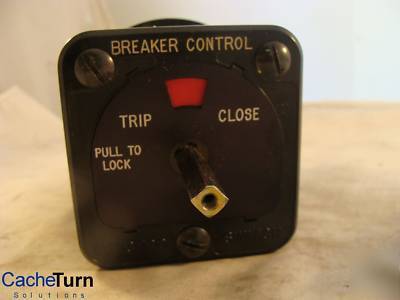

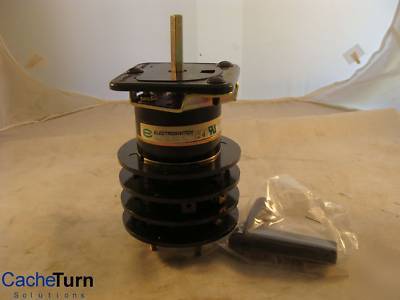

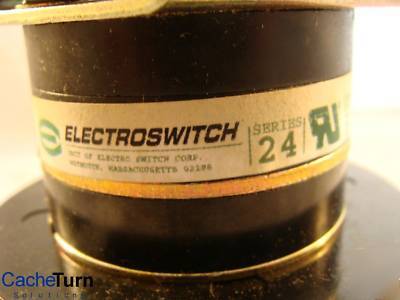

Electroswitch Series 24 Control Switch NOS!
Double-Sided, Double-Wiping, Knife-Type Rotary Contacts
Silver Contact Surfaces for Long, Reliable Low Contact Resistance Life
#8-32 Terminal Screws Easy Installation of #12AWG Wire
Standard Three Hole Panel Mount
Control Switch Special Features
Spring Return to Normal (Vertical) Position Multi-Pole Contact Arrangements
Slip Contacts for Normal After Applications
Pull to Lock for Safety Lockout (see page 68)
Instrument Switch Special Features
Make-Before-Break (Shorting) Contacts
Common Input Tap Switch Arrangement Sequentially Connected
to Several Lines Using the Same Switching Deck
Positive Positioning Detent Mechanism
20A/120VAC 15A/240VAC 6A/600VAC 3A/125VDC 1A/250VDC
Overload Current (50 operations) 95A/120VAC 65A/240VAC 35A/600VAC
Making Ability for Circuit Breaker Coils 95A 125VDC
Contacts Resistance .01ohms maximum
Sections 1 to 10 Consult Factory For Additional Sections
Poles 1 to 20 Consult Factory For Additional Poles
Positions 8; Adjustable Stops for 2 8 Position Rotation
Contacts Break-Before-Make (Non-Shorting);
Action 45 Positive Detent or Momentary Indexing
Mounting Panel Mount, 3 Hole Mounting, Hardware Supplied
Panel Thickness 3 16" Max. Standard Others Available
Rotor Contacts Silver Inlay Phosphor-bronze, Double-Wiping
Stationary Contacts Silver Plated, with Integral Screw Type Terminals
Construction Contacts Enclosed in Molded-phenolic Insulators
UL: File No. E18174 CSA Class 1E Nuclear
The Series 24 Class 1E Utility products comply with the following Nuclear Standards: ANSI/IEEE C37.90, ANSI/
IEEE C37.90.01, ANSI/IEEE C37.98, ANSI/IEEE C37.105, ANSI/IEEE 323, ANSI/IEEE 344, ANSI/ASME NQA -1.
