New 2 channel pc based usb digital storage oscilloscope

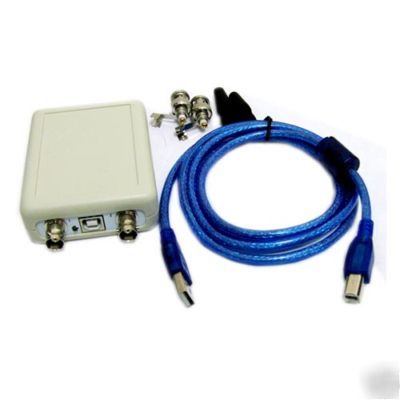

2 Channel PC Based Digital Storage USB Oscilloscope
View and save signal voltages with this compact 2 channel PC storage oscilloscope which plugs into your USB port: .
2 channel input and synchronized display
Input capture (trigger) function
Able to set any channel as the source of the capture (trigger) signal
Able to set rising or falling edge to capture (trigger) signal
Adjustable capture (trigger) signal level
Powered directly by USB port no batteries or external power supply required
Use with electronic teaching equipment
Carry out acoustic tests and research
Examine and repair apparatus and appliances
Signal input: BMC connection with universal oscillograph probe
Max sampling: 8kHz x 1/ (4kHz x 2)
Measurable frequency: 0Hz -3kHz
DIV array: horizontal 16DIV x vertical 10DIV
Error of voltage measurement: 30mV
Adjustable range of time domain: 10 mS/DIV-10800 S/DIV
Error of time measurement: 0.01%
Capacity of data record & save: 8388608 x 2
Max time of data record & save: 93 hours
2 channel PC storage oscilloscope is brand new and boxed and comes with:
CD which includes instruction manual and driver installer
