> 45 ton minster #5 obi press ejector wintriss extras
45 ton minster #5 obi press ejector wintriss extras

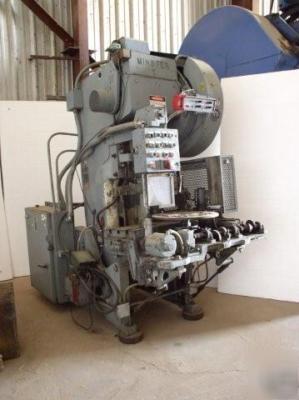

Used 45 Ton MINSTER #-5 Open Back Inclinable Press; Single Back Geared; S/N: 5-19349
Capacity................................................................. 45 Ton
Stroke.................................................................... 4''
Shut Height Over Bed (SDAU).............................. 11''
Slide Adjustment................................................... 2 3/4''
Bed Area.............................................................. 28" L-R x 18" F-B
Flanged Slide Face Area........................................ 18" L-R x 12" F-B
Opening In Bed..................................................... 6" L-R x 4" F-B
Throat Depth........................................................ 8''
Opening Through Back......................................... 13 1/2''
Distance Bed To Floor......................................... 36'' nominal
Speed................................................................. 90 S.P.M. (est.)
Electrical Characteristics...................................... 220 V.A.C.
Powered Air Eject System with Vacuum
18'' x 28'' x 2 1/2'' thick T-Slotted Bolster Plate
Automatic Positioning System Mdl. D-21; S/N: 840-40
OVERALL DIMENSIONS: ....................................... 68" L-R x 98" F-B x 86" H
WEIGHT:.................................................................... 10,000 lbs. (est.)
PRICE: ........$12,500...............................F.O.B.............................Casa Grande, Arizona
