Advantest R3265 100 hz to 8 ghz spectrum analyzer

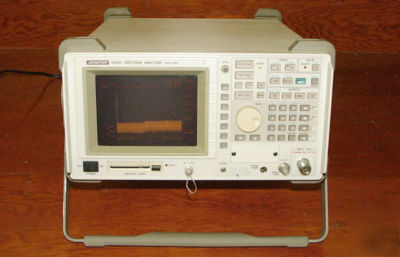

Advantest R3265 8 Ghz Spectrum Analyzer
The Advantest R3265 is a swept-tuned spectrum analyzer with an analog-to-digital section for displaying and analyzing data. It is equipped with GPIB remote control and a memory card function for saving and recalling waveform data and panel settings. The R3265 is a quasi-microwave spectrum analyzer designed to meet the user needs and to ensure easy operation. It incorporates a time domain function so it can be used for both digital and analog mobile communications. The unit performs especially well in measuring the spurious emission intensity of mobile communication equipment, the bandwidth of occupied frequencies and signal leakage from adjacent channels.
* Frequency Range: 100 Hz to 8 GHz
* Input Range: -135 dBm to +30 dBm
* Minimum Single Side Band Noise: -110 dBc/Hz
* Maximum Single Side Band Noise: -95 dBc/Hz
* Minimum Resolution Bandwidth: 10 Hz
* Maximum Resolution Bandwidth: 3 MHz
* Frequency Reference Accuracy: 1 ppm / year
* High input sensitivity of -145 dBm
* Includes a burst signal (TDMA and video signals) analysis function
* Multi-Marker with up to eight points
* Extensive EMC measurement functions
