13' x 1/4" amada gap-frame hyd squaring shear #25468

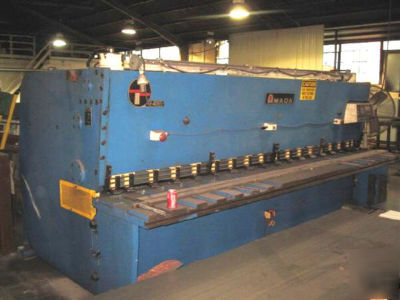

13' x 1/4" AMADA GAP-FRAME HYDRAULIC SQUARING SHEAR
New 1980, Serial No 40650049, Model H4065
40" Power Back Gauge (Front Operated)
Electronic Front Control Panel For All Functions
Shearing Capacity, Mild Steel........... 13' x 1/4"
Cutting Length, Maximum................. 157.5"
Length of Blade......................... 161.42
Depth of Gap............................ 19.69"
Rake Taper Per Foot, Maximum............ 2-DEGREES
Blade Gap Adjustment, Range............. .001" to .026"
Strokes Per Minute, Range............... 16 to 60 SPM
Main Motor, Horsepower.................. 20 HP
Floor Space Required, L x W............. 14'6" x 9'1"
Overall Height.......................... 6'6"
Weight, Approximately................... 21560 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $29,500.00
