> Parker, model# KF2MAUS34A342A,2.5" bore x 2.5" stroke

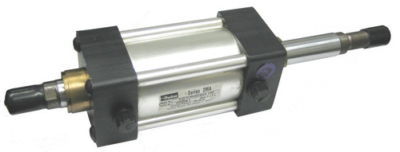

Parker, model# KF2MAUS34A342A,2.5" bore x 2.5" stroke
2MA Series, Non-Lube NFPA Double Rod Air Cylinder
2.500 bore x 2.500 stroke With Magnetic Piston
PARKER, Model# KF2MAUS34A342APARKER, Model# KF2MAUS34A342APARKER, Model# KF2MAUS34A342APARKER, Model# KF2MAUS34A342A
Bore Sizes: 1-1/4, 1-1/2, 2, 2-1/2, 3-1/4, 4,5,6,and 8
Self-Regulating - pressure reducing valve for automatic shut-off
Standards: NFPA Interchangeable (ANSI/NFPA T.3.6.7R2-1996) for 1 8 bore sizes.
Strokes: Available in any practical stroke length
Operating Medium: Pneumatic, 250-PSI. Optional 250 PSI Hydraulic Service (non-shock, and non-cushioned).
Piston Rod Ends: 3 standard, specials to order
Single or double piston rod ends available
Standard Operating Temperature: -10F to + 165F
Optional High Temperature Option: -10F to + 250F
NPTF Ports Standard, Others Available Upon Request
Adjustable Cushions head end, cap end, or both ends (Captive Design)
Clean Plus Coatings (FDA Compliant)
- Corrosion Resistant Aluminum Construction Throughout
- Removable Rod Gland Assembly
- Self Compensating Rod Wiper and Seal
