Icom M505 dsc vhf radio with built in ais receiver
BEST CHECK ON STOCK PRIOR TO ORDERING AS SOMETIMES THIS POPULAR RADIO IS IN SHORT SUPPLY

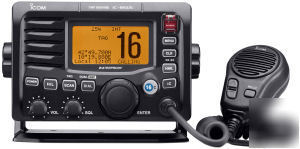

ICOM M505 VHF/DSC Marine Transciever ( Dual Station Capable ) WITH BUILT IN AIS RECEIVER
The new IC-M505 VHF/DSC marine transceiver and its optional Commandmic HM-162 is inspired by the design of the popular IC-M503E, and provides unrivalled features and performance. The optional HM-162 will allow for full remote control of all the built-in Class D DSC functions of the IC-M505, as well as providing intercom capabilities and other remote functionality including foghorn and a loud hailer.
Now including built in AIS, the IC-M505 VHF/DSC marine transceiver and its optional Commandmic HM-162 is inspired by the design of the popular IC-M503E, and provides unrivalled features and performance. The optional HM-162 will allow for full remote control of all the built-in Class D DSC functions of the IC-M505, as well as providing intercom capabilities and other remote functionality including foghorn and a loud hailer.
Improved waterproof construction to IPX8: (1.5 meter/30 min).
Both the IC-M505 have an improved waterproof construction to IPX8: (1.5 meter/30 min). This gives waterproofing level greater than anything else currently in the market.
The IC-M505 retains 4 x 6 dimensions while reducing case depth by 15.6mm. The IC-M505 features large buttons and knobs, which are ergonomically laid out for easy, user-friendly operation. They are also backlit for night time use.
Hailer function (25W) and auto fog horn function
When connected to a two-way hailer horn, communication with other boats and deck or dock hands is easy. The built-in amplifier increases talk power to 25W making your message loud and clear. Four fog horn patterns are available for the automatic fog horn, adding further to the safety of the vessel.
Built in Class D DSC capability. Separate Ch.70 receiver built in.
The IC-M505 has a built-in Ch 70 receiver, which monitors activity, even while you are receiving another channel. When in an emergency situation, an automated distress call can be sent with a touch of a button.
NMEA Input/ Output for GPS receiver connection.
The IC-M505 has a capability of up to 168- character full dot-matrix display that allows a variety of information such as GPS data and DSC emergency data etc. to be seen instantly and easily. With the backlit display, the large 10-keypad buttons and knobs, the IC-M505 is easy to operate.
The IC-M505 features a large speaker that can produce very loud and clear reception without requiring repetition of the message, even over engine or other background noise.
The IC-M505 has excellent receiver performance and calls are remarkably clear and free from noise. The powerful audio output from the front facing speaker further increases the clarity of received calls.
Ideal for a wide range of commercial and leisure users
The unique features and stunning design of the IC-M505 make it an ideal VHF/DSC for a variety of commercial and leisure users. These include motorboat & yacht owners, small commercial boats, fishing boats, HM Coast guard, marine police, small rescue organisations etc.
* Microphone (HM-126RB/RG) allows connection from rear panel
* Instant access to Ch. 16 and call channel
* Convenient TAG scanning function with simple add/delete
* Voice scrambler (UT-98 or UT-112) options available
