12V in out 1CH led dimmer adjust brightness controller

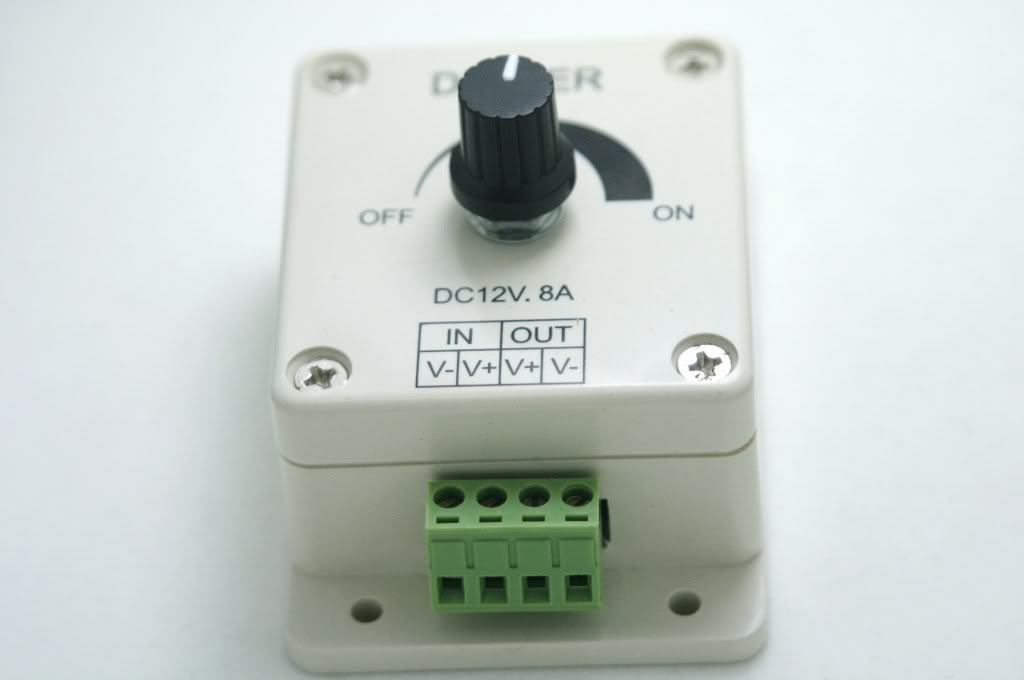

12V IN OUT 1CH LED DIMMER Adjust Brightness Controller
Working temperature: -20-60
External dimension: L89 W59 H35 mm
Packing size: L160 W95 H51 mm
Static power consumption: <1 W
When turned complete to left the dimmer turns the ouput off.
1. Adopt buttons control, and every button function as follows:
Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
Adopt rotary button, its function as follows:
A: Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.
B: Rotate button to the left, brightness will be darker,when you rotate it to the far left, the light will be turned off.
Supply voltage of this product is DC12V never connect to DC24V or AC220V directly
Never connect two wires directly in case of short circuit
Lead wire should be connected correctly according to colors that connecting diagram
Warranty of this product is one year, in this period we guarantee replacement or repairing with no charge, but exclude the artificial situation of damaged.
