New ( ) jet 14" zx series large spindle bore lathes

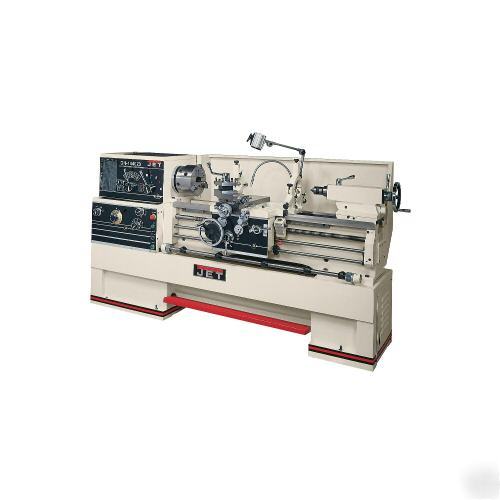

NEW JET "GH-1440ZX, 14" Swing 40" Centers, D1-8 Camlock Spindle, 7-1/2HP, 3Ph, 230/460V"
EQUIPPED WITH AN ACU-RITE 300S 2 AXIS DIGITAL READOUT
WE ALSO HAVE A DEALER FLOOR MODEL AVAILABLE WITH ACCU-RITE 2 AXIS DRO'S FOR $10,499.00- SOLD WITH A FULL 2 YEAR WARRANTY.
CALL (***)-304-3720 FOR MORE DETAILS OR EMAIL US.
GH-1440ZX : 14"x40" Large (3-1/8") Spindle Bore Lathe
* 14" ZX SERIES LARGE SPINDLE BORE LATHES
* Uniquely designed exclusively by JET
* ISO 9001 certified manufacturer
* 3-1/8" bore spindle is supported by two tapered and one ball bearing
* Chrome molybdenum headstock gears are hardened, ground, and shaved
* Universal gearbox allows inch, metric, diametral, and module pitch threads, no change gears required
* Carriage Feature one-shot lubrication and Turcite B on bed sliding surfaces
* T-slotted compound slide featuring a four-way tool post
* One-piece cast iron base absorbs vibration allowing heavier cuts
* High quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground
* Removable gap allows up to 23-5/8" diameter work
* Five position automatic carriage stop increases productivity
* Attractive chrome control levers, dials, and knobs complete this impressive package
* Tolerance test certificate included
* 10" 3-jaw scroll chuck with top reversing jaws
* 12" 4-jaw independent chuck
* Large capacity steady rest
* Fully integrated coolant system
* Full length splash guard and coolant return
* Large easy to use foot brake
* Articulating halogen work lamp
* Centrally located controls with jog button
* Mounting pads and levelers
* Spindle sleeve (MT-7 to MT-5)
* Dead center and live center
* Tool box and adjusting tools
Distance Between Centers (in.)
Number of Longitudinal and Cross Feed Rates
Range of Longitudinal Feeds (IPR)
Tailstock Spindle Travel (in.)
