Fluke 43B Power Quality Analyzer

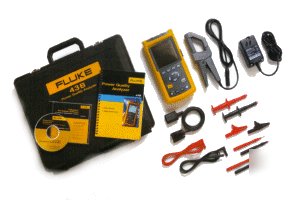

Power Quality Analyzer includes the following accessories:
* AC20 Industrial Test Clips
* AC85 Large Jaw Alligator Clips
* TP1 Flat-tipped Slim-Reach Test Probes
* TP4 4 mm Round Slim-Reach Test Probes
* PM 9080 Optically Isolated RS232 Interface Adapter
* BP120MH Rechargeable Ni-Cd Battery Pack (installed)
* PM 8907 Line Voltage Adapter/Battery Charger
* SW43W FlukeView Power Quality Analyzer Software for Windows and Users Manual on CD-ROM.
* Shielded Banana-to-BNC Adapter
* Users Manual / Application Guide
Maintain power systems, troubleshoot power problems, diagnose equipment failures
The Fluke 43B Power Quality Analyzer performs the measurements you need to maintain power systems, troubleshoot power problems and diagnose equipment failures. All in a rugged handheld package
* OC4USB Optically Isolated USB Interface Adapter
* BP120MH Rechargeable NiMH Battery Pack (installed)
* SW43W FlukeView Power Quality Analyzer Software and Users Manual on CD-ROM
* Combines the most useful capabilities of a power quality analyzer, multimeter and scope
* New! Calculates 3-phase power on balanced loads, from a single-phase measurement
* Measures power harmonics, and captures voltage sags, transients and inrush current
* Monitoring functions help track intermittent problems and power system performance
* Menus use familiar electrical terminology
* New! Toggle through the most commonly used power quality modes with a single keystroke
* Records two selectable parameters for up to 16 days
* New! 20 measurement memories to save/recall screens and data with cursor readings
* New! FlukeView Software can log harmonics and all other reading over time
* New! FlukeView Software provides a complete harmonics profile up to the 51st harmonic
* Measures resistance, diode voltage drop, continuity, and capacitance
* Users / applications manual and power quality video to help answer tough questions
* Complete package with voltage probes and 500A current clamp, FlukeView Software and optically isolated interface cable
* 3 year warranty on the Fluke 43B, 1 year on accessories
* Voltage and current waveforms
* True-rms voltage and current
New! On-Screen graphics show you how to set up 3-phase power measurements and displacement power factor measurements for 3-wire, balanced loads.
* Voltage, current, and power harmonics
* Total harmonic distortion (THD)
* Phase angle of individual harmonics
* Continuously measure volts and amps on a cycle-by-cycle basis for up to 24 hours
* Use cursors to read time and date of sags and swells
* Catch voltage transients and waveform distortion
* Catch and save up to 40 transients
* Correlate the cause of transient with time and date stamps
* Inrush current up to 500 A with supplied current probe
* Use cursors to measure inrush timing
* Connect-and-View Escope for quick waveform display
* Voltage and current channels
* 20 MHz bandwidth with optional 10:1 voltage probe
* (15 kHz on current channel with optional clamp)
* FlukeView Power Quality Analyzer Software (included)
* Capture measurement screens and data for professional-looking reports
* Log readings to your computer disk drive
* Log harmonics data over time to create a complete harmonics profile
* Works with Windows word processing, spreadsheet and analysis software
* Windows 95 / 98 / Me / 2000 / NT 4.0 compatible
* Supports temperature accessories with direct readout in degrees
* 10 measurement memories for saving screens
* 500 A ac current clamp and voltage probes with four sets of probe tips
* User's Manual, applications manual and power quality video to help answer questions
Voltage Rating: 600 Vrms, CAT III
Ranges: 5.000 V, 50.00 V, 500.0 V, 1250 V*
Ranges: 50.00 A, 500.0 A, 5.000 kA, 50.00 kA,
Watts, VA, VAR Reactive Power 1-phase and 3-phase, 3 conductor balanced loads
Ranges: 250 W, 2.50 kW, 25.0 kW, 250 kW, 2.50 MW,
25 MW, 250 MW, 625 MW, 1.56 GW
Accuracy: (2% + 6 counts) Total Power,
(4% + 4 counts) Fundamental power
Range: 0.00 to 0.25 Not specified,
0.25 to 0.90 0.04, 0.90 to 1.00 0.03
V,A (3% + 2 counts), W (5% + 2 counts)
Accuracy: V,A (5% + 3 counts), W (10% + 10 counts)
Accuracy: V,A (15% + 5 counts), W (30% + 5 counts)
Phase: Volt & Amps (between Fund & Harmonic) Accuracy: 2nd ( 3 ) . . . 51st ( 15 )
Watts (between Volt Fund. & Amps Harmonic)
Recording times (selectable): 4 min to 16 days
Vrms actual, Vrms max, min (AC+DC):
5.000 V, 50.00 V, 500.0 V, 1250 V*
Accuracy: Readings (2% + 10 counts), Cursor readings (2% + 12 counts), Cursor Readings Average (2% + 10 counts)
Arms actual, Arms max, min (AC+DC):
50.00 A, 500.0 A, 5.000 kA, 50.00 kA
Recording times (selectable) : 4 min to 16 days
V/A/Hz: Line voltage, current, frequency
Power: Watts, VA, VAR, PF, DPF, frequency
Harmonics: THD, volts(Fund. & Harmonics), Amps (F&H) Watts (F&H) Freq. (H),%(H) of total, Phase(H), KF
Ohms: Ohms, Diode, Continuity, Capacitance
Scope: DC voltage, DC Current, AC Voltage, AC Current, Frequency, Pulse Width + or -, Phase, Duty cycle + or -, Peak max, Peak min, Peak min-max, Crest Factor
Useful bandwidth input 1: DC to 1 MHz (with test leads TL24)
Voltage threshold settings: 20%, 50%, 100%, 200% above or below reference signal
Reference signal: After START, the Vrms and frequency of the signal are measured. From these data a pure sinewave is calculated as reference for threshold setting.
Vpeak min, Vpeak max at cursor:
10 V, 25 V, 50 V, 125 V, 250 V, 500 V, 1250 V
1 A, 5 A, 10 A, 50 A, 100 A, 500 A, 1000 A
1 s, 5 s, 10 s, 50 s, 100 s, 5 min
A Peak max at cursor 1 and cursor 2
4 to 235 pixels (1 pixel = inrush time/250)
Scope, dual channel scope with measurement reading
Ranges: 1 MW//12 pF; with BB 120: 20pF
Accuracy: 2 pF; with BB120 3 pF
Ranges: 1 MW//10 pF; with BB 120: 18pF
Ranges: 50 mV/div to 500 V/div
Vertical sensitivity, resolution:
Ranges: 5 mV/div to 500 V/div, 8 bit (256 levels)
Ranges: DC to 20 MHz at inputs, or with BB120 and VPS 100-R probe (opt); 1 MHz with TL24 Leads
10 kHz with I400s Current Clamp
Record length (min/max samples):
Ranges: Input 1 or Input 2 or Automatic selection
Automatic Connect-and ViewTM, Free Run, Single Shot.
Advanced automatic triggering that recognizes signal patterns and automaticaly adjusts triggering, timebase and amplitude. Automatically displays stable pictures of complex and dynamic signals like motor drive and control signals.
Measurement readings, per channel selectable:
Ranges: Volts & Amps (DC, AC, AC + DCrms, Peak max, Peak min, Peak min/max). Frequency, Duty cycle + or =, Phase, Pulse Width + or -, Crest factor
Ohms, Diode, Continuity, Capacitance
Ranges: 500.0 W, 5.000 kW, 50.00 kW, 500.0 kW, 5.000 MW, 30.00 MW
Ranges: Beeper on at < (30 W 5 W)
Ranges: 50.00 nF, 500.0 nF, 5.000 F, 50.00 F,
Ranges: -100.0 C to 400.0 C, (-200.0 F to 800.0 F)
Max current, max open circuit volt:
Ranges: 0.5 mA, < 4 V (all functions above)
Optical Isolated RS-232 Interface
Supports HP LaserjetTM, Deskjet, Epson FX/LQ and Postscript printers with optional PAC91 Printer Adapter Cable
FlukeView Power Quality Analyzer Software with PM9080 Interface Adapter included
FlukeView Power Quality Software
PC or 100% compatible with Windows 95, 98, Me, 2000, NT 4.0.
* * Requires optional temperature accessory
Line voltage adapter/battery charger included
Installed battery: Rechargeable NiCd pack (4 to 6 Vdc)
Charging time: 4 hours (Fluke 43B off) 12 Hours (Fluke 43B on)
Refresh Cycle: 8 to 14 hours (to keep NiCd battery capacity optimal)
Temperature: 0 C to 50 C (32 F to 122 F)
Environmental: MIL 28800E, Type 3, Class III, Style B
Enclosure: IP51 (dust, drip water proof)
Size: (H x W x D) 232 x 115 x 50 mm (9.1 x 4.5 x 2 inches)
Weight: 1.1 kg (2.5 lbs) incl. battery pack
For measurements on 600 Vrms Category III installations, Pollution Degree 2, in accordance with EN61010-1 (1993) (IEC1010-1), ANSI/ISA S82.01-1994, CAN/CSA-C22.2 No. 1010.1-92 UL3111-1
Surge protection: 6 kV on input 1 and 2
Floating measurements: 600 Vrms from any terminal to ground
3 years parts and labor on Fluke 43B, 1 year on accessories
43B User's Manual (PDF, 860kB)
43B Reference Manual (PDF, 158kB)
