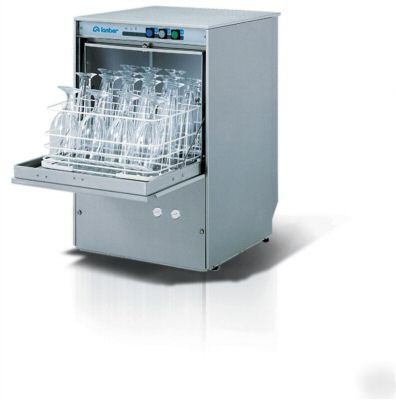

Lamber undercounter glass washer with pumped drain
Lamber Glass Washer with Drain Pump
Lamber offers a very wide selection of models from
the smallest counter top glasswasher to the largest
automatic conveyer dishwasher. Please contact us for
COMPACT GLASSWASHER WITH BOOSTER
Complete with stainless steel top and sides. 208-230 volts single phase.
VOLTS HZ AMP. CIRCUIT WATT CYCLE HEIGHT WIDTH DEPTH WT
230 60 12 15 2 610 2 mn 29 1/2 19 20 1/4 113 lbs
S480DPS: Compact glasswasher with booster, rinse & soap pumps, drain pump
Washing period cycle 2 minutes.
Wash and rinse arms in stainless steel.
Lower and upper rotating rinse arms.
Booster element: 2400 Watts (booster & tank element alternate)
Water inlet: 1/2 pipe with 3/4 male threaded (hose fitting)
Must be connected to hot water only. 120-140 F, 50-60 C
Required drain: S280DPS: 1 1/2" ABS at maximum height of 39", 1m.
Wash temperature: 140 F, 60 C
Rinse temperature: 180 F, 85 C
Note: Service connections (electricity & plumbing) are in the back of the machine. This high temperature machine releases steam.
We do not recommend installation under melamine or arborite counters.
