> Iemca genius 112/37 magazine type barfeed 1/2" cap.

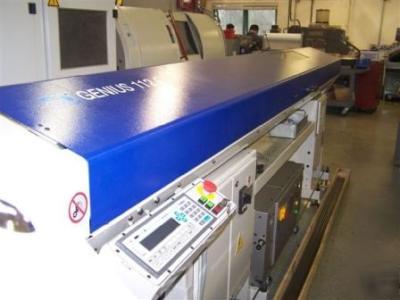

Iemca genius 112/37 magazine type barfeed 1/2" cap.
General specifications as per brochure
Bar Size Capacity: 1mm - 12.7mm (.040" - .500")
Magazine Maximum Capacity: 8.5 linear inches
Operating Voltage: 30 VAC 3 phase, 60 Hz
Max. Feed Speed: 13.7" per second
Return Speed: 13.7" per second
Bar Change Time: 20-25 seconds for 12' bar
Bar Straightness Requirement: .5mm/m (.007"/ft. tir)
Dimensions (approx.): 16' x 2' x 4'
Originally configured for a Citizen M-12
