New port 708 8-channel butterfly laser diode mount

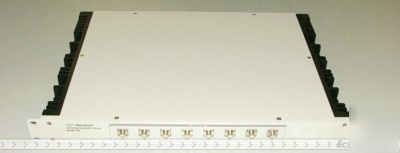

Newport 708 8-Channel Butterfly Laser Diode Mount
The Model 708 8-Channel Telecom Laser Diode Mount is designed to hold up to 8 butterfly-type telecommunications laser diodes. The mount includes rack-mount ears, and can be easily installed into a standard instrumentation rack. Eight fiber optic bulkhead connectors are mounted onto the front panel, with FC/PC connectors. The 708 mount offers an easy-to-use platform that is compatible with all of Newport s benchtop laser diode instrumentation and with our test and measurement and burn-in rack type systems.
* Laser Diode Packages: 14-Pin butterfly package
* Mounting Plates: 8 butterfly flatpack socket
* Electrical Connections: 15-pin male D-sub, LDD and TEC control
* External Fiber Optic Connector: FC/PC
* Internal Fiber Optic Connector: FC/PC
Unit retails new for $2,745.00
This unit is designed to work with the Newport 300, 500, 5000, 3150, 6000, 8000, and 8008 Series LDD and TEC instruments and plug-in modules.
