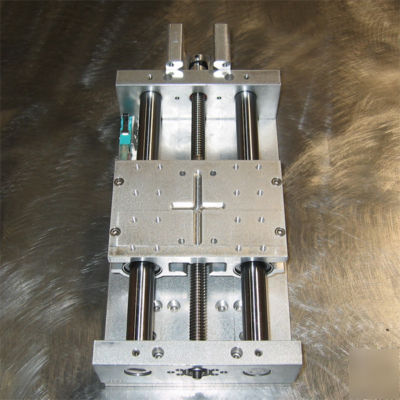

K2 cnc router 8" linear slide, acutator - ZA800QR
ALL NEW parts - K2 CNC 8" Z axis with Rigid 4 Bearing Configuration.
Nema 23, or Nema 34(Addition Charge).
Feel free to email me if you have any questions.
4 qty 20mm shafts and bearing.
Top and bottom leadscrew support.
Kerk nut with anti backlash feature.
Leadscrew pitch is .1, 10 revolutions = 1.0", one start lead.
Resolution of leadscrew is .0005" or better.
Kerk leadscrews and anti-backlash nut.
Nema 23 mount with 10-32 screws. Nema 34 is available for an additional $10.00.
.200" pitch with 2 start will move 1.00" with ten rev. is available for an additional $10.00.
(Home switch) included and installed.
Leadscrew coupler with a 0.25" hole diameter.
0.375" or 0.500" ID coupler is available for an additional $5.00.
Nema 34 is available upon request add $10.00
Direct drive 0.250" ID coupler with anti-backlash. Coupler with 0.500" ID Add $5.00.
We will provide limited drawings after you purchase. We will NOT provide the CAD files in IGS, Solidworks, or and other 3D format files.
