Variable capacitor, two gang, 150 + 150PF

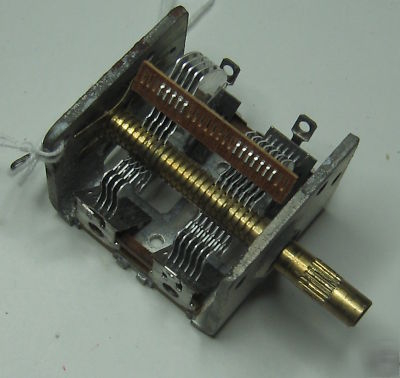

This new old two gang variable capacitor is clean and in fine working order. I cannot be precise about the capacity range but it is of the order of 20 - 150 pf and 25 - 150 pf, each section has a trimmer. NOTE: This capacitor tunes 'backwards', that is maximum capacity is fully clockwise.
The small size of this capacitor makes it ideal for a portable QRP ATU or rig . Capacitor width is 38mm, height is 33mm and 42mm with vanes open, the depth is 43mm. The brass shaft is 6.3mm dia and it extends approx 17mm.
There are a number of threaded fixing holes on the base, front and rear.
