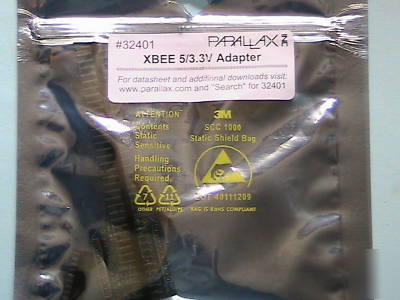

Xbee 5/3.3V adapter #32401
This low cost XBee 3.3-5V Adapter Board comes in partially assembled kit form and provides a cost-effective solution for interfacing your microcontroller to any XBee or XBee Pro module (see Associated Modules below). A voltage regulator and 74LVC244A buffer is included onboard for safe interfacing to a 5 V supply, allowing for easy compatibility with virtually any microcontroller.
* Onboard 3.3 V regulator and 5 V to 3.3 V logic converters
* Four status indicator LEDs for Power, RSSI, Associate, and mode (sleep/ON)
* Converts XBee 2mm pin spacing to breadboard friendly 0.1" spacing
* Provides easy pluggable wire or solder connections
* Pin out compatible with other XBee Adapter Boards
* Partially assembled kit form for flexible configuration
* Compatible with all Parallax 3.3 V and 5 V microcontrollers

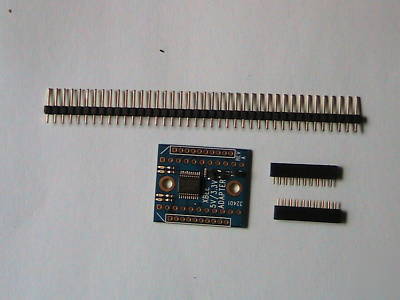

* (1) XBee 5V/3.3V Adapter PCB
* Diagonal cutter or hobby knife
* Power requirements: 3.3-5 VDC
* Communication: Serial pass-through to XBee module
* Dimensions: 1.51 x 1.00 x 0.58* in (38.3 x 25.6 x 14.8*mm)
* when headers are attached
* Operating temp range: -40 to +158 F (-40 to +70 C)
