Hp 8484A 10MHZ-18GHZ high sensitivity power sensor -

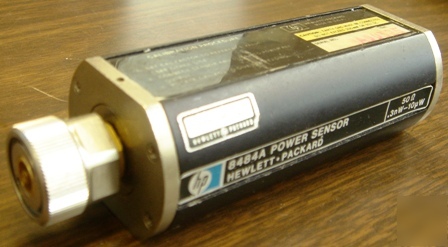

HP 8484A 10MHz - 18GHz Power Sensor
Frequency Range: 10MHz to 18GHz
Measurement Range: -70 dBm to -20 dBm
Power Range: 0.3nW to 10 uW APC-7 (7mm) with Coupling Nut ConnectorExcellent SWR for reducing mismatch uncertainty
General purpose sensor intended for manual and automatic RF and microwave power measurements
Compatible with HP 435B, 436A, 437B, 438A, EPM-441A and EPM-442A Power Meters
The 8484A High Sensitivity Power Sensor measures power from 0.1nW to 10 uW over a frequency range of 10MHz to 18GHz. Noise and drift have been reduced to less than 5% of full scale on the 300 pW range (only 15 pW) when it is used with the 435B power meter. Noise and drift are even less with the 436A, 437B and 438A power meters.
Works great, with a good physical appearance.
