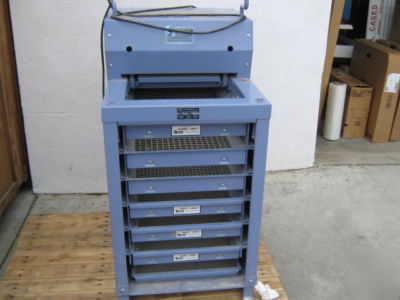

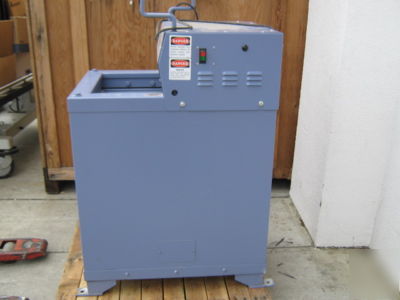

Gilson testing screen model ts-2 w/ 6 sieve trays gold


The Gilson Testing Screen is ideal for particle size determinations on large samples of aggregate, slag, ores, and many other coarse materials. Batch sizes up to one cubic foot (0.028m3) or more can be processed into six fractions in as little as three to five minutes, depending on material type. Vibration and amplitude characteristics are fixed at optimum for mineral aggregates in the 4in (101mm) to No.4 (4.75mm) size range, but options and accessories are available to optimize machine performance when testing finer samples or special materials. The standard Testing Screen can be used to process material all the way down to No.200 (75?m) if less efficient separations are acceptable.
Overall Dimensions: 23x31x43in (584x787x1,092mm), WxDxH.
Five Coarse-Series Screen Trays and one Standard Dustpan are included. Each tray features a generous 14.75x22.75in (375x578mm), 2.33ft3 (0.22m3) clear screen area.
