> 30" wilton direct drive single-spindle drill #25684
30" wilton direct drive single-spindle drill #25684

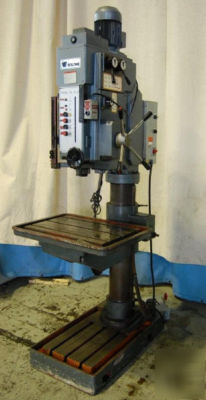

30" WILTON DIRECT DRIVE SINGLE-SPINDLE DRILL
New 1992, Serial No 2187/466, Model 2445
Power Feed Gear Box w/Electro-Magnetic Clutch
Coolant System (Built-In Base)
Swing Diameter......................... 30"
Drilling Capacity, Steel............... 2"
Tapping Capacity, Steel................ 1.75"
Spindle Travel, Power.................. 10"
Spindle-Nose to Table, Maximum......... 30.5"
Spindle-Nose to Table, Minimum......... 2.75"
Spindle-Nose to Base, Maximum.......... 50"
Table Working Surface, W x L........... 23.5" x 33.5"
Table Weight Capacity.................. 575 LBS
Quill Diameter......................... 3.465"
(9) Spindle Speeds, Range.............. 55 to 1338 RPM
(4) Spindle Feeds, Range............... .003 to .013 IPR
Spindle Motor Horsepower............... 4 HP
Floor Space Required, L x W............ 4'5" x 2'6"
Overall Height......................... 9'
Weight, Approximately.................. 2450 LBS
With A Replacement Price Of $19,349.
PRICE: F.O.B. OUR WAREHOUSE ........ $4,950.00
