204,200X usb digital microscope 1.3 mega pixel camera

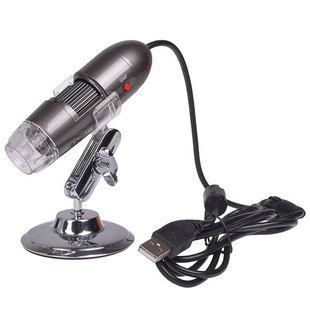

Mini Handheld USB Digital Microscope 1.3 Mega Pixel Video Camera 200X
* First, insert the USB interfaces. Second, install the driver. Third, from the "Start" menu in the "USB Digital Microscope" open "AMCap"; can begin operation after the (first install to set it: the software's Options menu to open preview). Fourth, the microscope magnification of the area to be aligned (on the product's surface). Fifth, adjust LED brightness light switch to the right. Sixth, adjust the rotation axis, to the appropriate focus (to the left is the 200X, to the right is 10X). Seventh, the Save Picture As (JPG or BMP).
* Industrial inspection, testing computer components, telecommunications component testing, scientific teaching tools, laboratory research, medical analysis, school research tools, insect anatomy / examination Plant dissection / examination, skin check, scalp check, textile testing, jewelry inspection, collection / coin inspection, printing inspection, reading help, online chat, etc.
* 1, image sensor: 1.3 million pixels.
* 2, controller: high-speed DSP.
* 3, lens: 27-fold and 100-fold axis micro lens
* 4, Focus range: adjustable, lowest 10MM.
* 5, camera: software and hardware (can be).
* 6, video, image pixels interception: 2560x2048 (5M Pixel), 2304x1738 (4M Pixel), 1600x1200 (2MPixel), 1280x1024 (1.3M Pixel), 1280x960, 1024x768, 800x600, 640x480, 352x288, 320x240, 160x120.
* 7, the lens speed: 30f / s at a brightness of 600 lux of light.
* 8, Flash Control: 50Hz/60 Hz
* 10, light source: white LED light 4, can control the lighting of the light and dark.
* 11, magnification: 20 times to 200 times
* 12, power supply: USB Interface (5V DC)
* 13, the software compatibility: TWAIN / VFW, etc.
* 14, the hardware requirements: Petium above, 20M hard disk, CM ROM drive, 128MB RAM, Direct X VGA Card.
* 15, computer interface: USB2.0 and USB1.0
* 16, the operating system: Windows 98SE/ME/2000/XP/Vista
* 17, product-inch foot: 112MM (length) x33MM (diameter)
* 18, parts: a bracket, an English manual, a CD driver, neutral color box.
* 19, the color of product appearance: white or black.
* 1 x USB Digital Microscope 1.3 Mega Pixel Video Camera 200X
