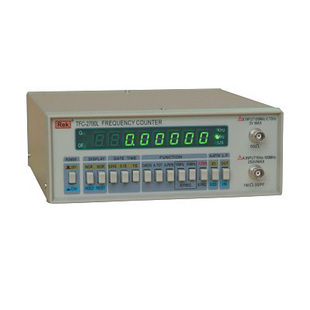

Tfc-2700L high-precision frequency COUNTER10HZ~2700MHZ
Brand New! TFC-2700L High-precision frequency counter 10hz~2700Mhz
TFC-2700L 3 measurement ranges from 1 Hz ~ 2700 MHz input frequency, its built-in temperature-compensated oscillator (TCXO) to ensure that the machine is still in use in a long time to obtain accurate and stable measurement results, this machine uses ultra-high frequency analysis processor, low-frequency can also be relatively accurate measurement results.
Gate: Hz, kHz, MHz, GHz red light.
Frequency range: 1 Hz ~ 2700 MHz
Gate Time: 0.1 seconds, 1 second, 10 seconds
A Range: 1 Hz ~ 20 MHz (20mVrms) / 1M
B range: 100 kHz ~ 120 MHz (50mVrms) / 1M
C Range: 80 MHz ~ 2700 MHz (20mVrms) / 50
When Clay: Frequency 20M (PTX0, temperature-compensated crystal oscillator)
Temperature Stability: <5 ppm (0 ~ 50 )
Power consumption: AC110 V / 220 V 10%, 15W
