Siemens chemtube peristaltic tube pump wallace tiernan

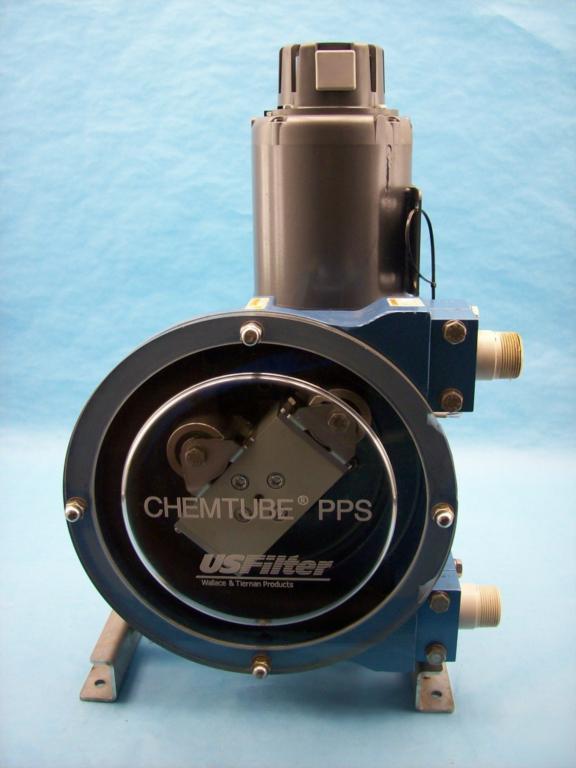

Siemens Chemtube Peristaltic Tube Pump Wallace Tiernan
* ChemTube PPS Model S26 Pump Wallace and Tiernan
* Liquid Chemical Feed System USFilter The Chemtube PPS
Model S26 positive displacement peristaltic pump system is designed to handle a wide variety of chemicals and liquids.
* Simple operation consists of two rotating rollers that gradually compress as elastomeric tube, forcing liquid just ahead of each roller.
* The tube snaps back to its original shape after the rollers pass, refilling with liquid for the next discharge revolution.
* The pumped liquid only comes in contact with the tube interior and the end fittings.
* High suction lift capability
* Technical Data Materials of Construction:
* Available Hose Material: Natural Isoprene, Buna N, EPDM, Hypalon
* Connection & Insert Materials: 316SS, PVC, or Titanium
* Connection Size: 1-1/4 NPT
* Leak Detector Switch Rating:100 VA Max, 230 Volts, 2.5 amps
* Operating Range: 20 to 1 with SCR Variable Speed Drive, 10 to 1 or 100 to 1 with Inverter Drive
* Accessories: Pulsation Dampeners, Calibration Columns, Pressure Relief Valves
* Power Supply: 115 /230 Volts Single Phase
* 230/460 Volts Three Phase
* -10 to 74 C (14 to 165 F) (Buna N Tube )
* -10 to 85 C (14 to 185 F) (Natural Isoprene Tube)
* -10 to 93 C (14 to 200 F) (EPDM Tube)
* -10 to 85 C (14 to 185 F) (Hypalon Tube)
* Max Discharge Pressure: 8 Bar (120 PSI)
* Max Suction Lift: 8 m (28 ft.)
* Max Flooded Suction: 3 Bar (45 PSI)
* Motor Hp: Up to 1-1/2 HP Induction
* Up to 1-1/2 HP Inverter or Variable Speed
* Weight: 66 kgs (145 lbs)
* These pumps were purchased by a government agency but were never put into production they are in new, out of original packaging condition. Please see photographs for details and we do welcome any questions you might have.
* Lot includes Control Box VFD, Calibration Column and Pressure Relief Valve
