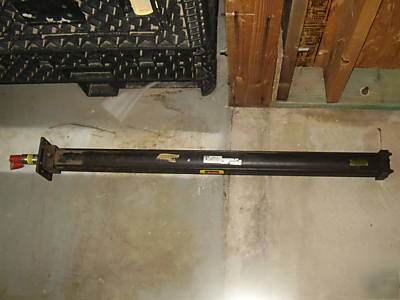

Parker hydraulic cylinder 3L series, 2.5 bore 40 stroke
PARKER PART NUMBER: 2.50 JB3LLU33AC 40.000
TIE ROD DESIGN, STYLE JB - SQUARE FLANGE HEAD, NFPA STYLE MF5 - SUITABLE FOR USE ON STRAIGHT LINE FORCE TRANSFER APPLICATIONS. THE 3L SERIES CYLINDERS ARE 70 BAR MEDIUM PRESSURE CYLINDERS, RATED FOR USE AT WORKING PRESSURES UP TO 70 BAR DEPENDING ON APPLICATION, USAGE. THIS CYLINDER HAS AN ENVELOPE PRESSURE OF 1400 PSI MAXIMUM. THE OVERALL LENGTH IS 50".
FOR MORE SPECIFICATIONS / OPERATING MANUAL SEE: http:// /portal/site/PARKER/menuitem.734d2913eb3c11da13576f849420d1ca/?vgnextoid=d195f87357e28110VgnVCM10000048021dacRCRD&vgnextfmt=EN&vgnextcatid=166302&literaturetype=Catalogs&searchAttr=searchResult&languages=EN&parentCh=FindCatlogId
Estimated Retail Price: $1,193.05
