New savair pneumatic air cylinder actuator *** ***

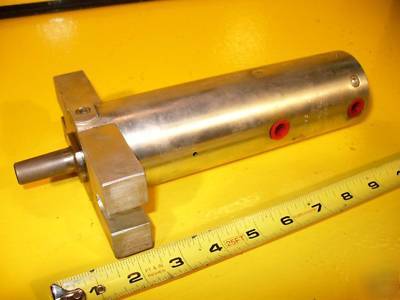

This is a SAVAIR INC. air cylinder. Made here in the Detroit area.
The shaft end is a MORSE taper #2. 1 3/16" long taper area. Tapers from .645". The shaft in the cylinder is square, so the cylinder shaft will not rotate.
This is a triple piston, which means it has a piston area of 10.87 sq. inches, for extra push with compressed air. With 80 lbs. of air pressure, this has 826 lbs. of pushing force.
Also included is 3 pages of technical & information on the cylinders.
