.003UF 630V orange dip polypropylene capacitors qty=30

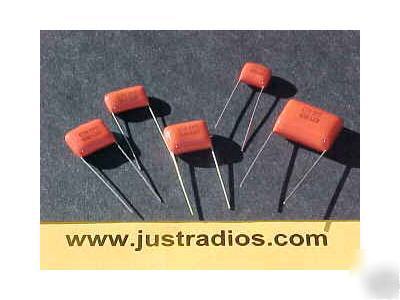

On sale are thirty (30) brand new 0.003 uF/mfd at 630 Volt "Orange Dip" Metal-Foil Polypropylene Film Capacitors. These are highest quality construction ISO 9002 & 9001 certified. These 630 volt Orange Dip film capacitors are made by ISO 9002 & 9001 certified manufacturer / OEM supplier to CDE (Cornell-Dubilier).
CAPACITOR Specifications and Features
* Premium quality PPN Polypropylene Metal-Foil construction.
* Electrode and lead spot welded, equivalent series resistance (ESR) minimized.
* Excellent replacement for paper/wax capacitors in tube radios/amps/audio systems. Also, Telecommunication equipment, industrial electronics and general electronics equipment.
* Epoxy dipped Orange Dips for superior heat, moisture and solvent resistance.
* EXTRA Long (33mm) copper-ply radial lead wires for easy "under chassis" installation.
* Test Voltage: 200% of Rated Voltage for 60 sec (ie 1260 Volts for one minute)
* Operating temp. range:-40 to +85 C.
* Capacitance tolerance +/- 10%.
* Stable against high frequency and change of temperature.
* Capacitance Range: All sizes 0.001uF thru 0.0088uF (for over 0.0088 uF our Metallized Film capacitors are recommended for tube radio/audio/amp applications)
* Low dissipation factor and high insulation resistance
* Dissipation Factor at 1KHz =< 1%
* Insulation Resistance(min) C=<0.1uF:30000Mohm ; C>0.1uF:3000Mohm.uF
* Excellent stability for High Frequency / High Current / Timing Circuit / Temp. Compensation Applications.
* ISO 9002 & 9001 certified.
