Groen DH20 tilting floor kettle 20 gal gas steam jacket
GROEN DH20 TILTING FLOOR KETTLE 20 GAL GAS STEAM JACKET
Model DH-20 Our Price $2,999.00 List Price: $32,330.00 Other Discount Stores: $17,781.00

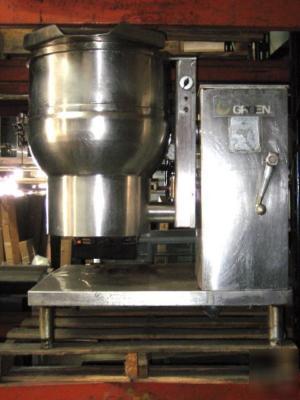

This is a Groen Tilting Floor Kettle gas model DH-20. It has a 20 gallon capacity, stainless steel steam jacketed unit. Operates with a self-contained gas heated steam source contained within the unit. Kettle is constructed of 304 stainless steel and interior is solid one-piece welded 316 stainless steel. The console and all exposed surfaces are also stainless steel. Controls are mounted at the front panel except the thermostat, which is mounted on the trunnion support arm. The kettle body is mounted on a combination kettle support tilt trunnion, which in turn is supported by the base. Base is supported by tubular S/S legs. Unit is gas heated and can be used with both propane or natural gas. Temperature range is from 150 to 295 F. Controls include Thermostat, Presure gauge, safety valve, pressure limit control, water sight glass, low water cut-off, gas regulator valveand electronic ignition module. Power ON switch, power ON indicator light, low water indicator, and heating light. Unit has a fin tube burner assembly delivering 72,000 BTU/HR firing rate with 44,140 BTU/HR into the product. Electronic ignition with standing pilot. Unit requires 1/2" IPS gas line connection and 115 volt electrical connection. No remote steam source required. Unit is 115 volts / 60Hz, and 1 phase. This unit is one of the industry leaders in kettles. All parts and accessories are available through the US.
* 316 Stainless Steel Liner
* Floor Mounted Control Console Supports
Brand GroenModel Tilting 20 Gallon Floor KettleModel Nbr. DH-20Outside Dimensions H 40" W 35" D 33"Electrical Specs. 115 Volts / 60Hz / 1 PhaseWeight 530 lbs.
