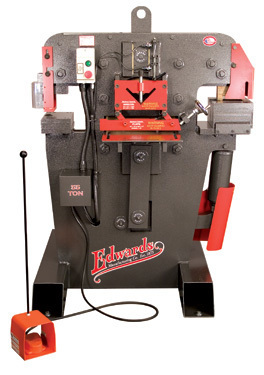

> Edwards 55 ton jaws iv hydraulic ironworker,bending
Edwards 55 ton jaws iv hydraulic ironworker,bending
Base Machine Price of $6199.00 208/240/3/60
NOTE: Stock Machine are subject to Prior Sale !
Electric Stroke Control NO CHARGE
PLUS FACTORY SPECIAL: Limited Time Offer: (1) ea Additional Tooling accessory at no Charge if ordererd with machine . Contact our office for any questions. This is a LIMITED OFFER !!!
SINGLE PHASE: Add $295.00 to the std Price
* Punching Station-Max size punch 1-1/16" dia
* Adjustable steel punch strippers
* Fast adjusting holddown bars
* threaded holes in table for jigs
* Pipe coupling welded to back sideof unit for optional backgauge
* Remote foot prdal operation
* Lifting Lugs for portablity
* Hydraulics Fully charged ready to operate
2. Punching Capacity:1-1/16" dia in 5/8" Plate
7. Flatbar shearing:Max width: 1/2" x 12"0r 3/8" x 1/4"/ Max Thickness: 3/4"" x 4"/Max. Round:7/8"/Max. Sq:7/8"
8. Angle shear Max Size: 4" x 4" x 1/4" or 3" x 3" x 3/8"
9. Cycle Time: 1/2" x 2" 2-seconds
10. Main Motor: Std- 5 HP 208/240/3/60 (440/480/3/60 Available ) Upgrade Cost Applies: Contact OUR OFFICE!
11. Delivery: Immediate - call for confirmation
12. F.O.B. Point other locations
14. FREIGHT RATES AVAILABLE ON REQUEST- Call or E-Mail
Optional Accessories on Original Equipment when ordered with New Equipment Only- Special Pricing
1. Special Voltage: Single phase add: $295.00/ 440 3-Phase ; Add $122.00
2. Auto Cut: Add $650.00 & save $100.00
3. Greesless Slides: Add: $239.00 & save $30.00
4. Quick Change Punch Coupling: Add $750.00
"Tooling Accessories" Special Discount Pricing applies when ordered with new equipment. (Additional options available)
1. VEE Notcher 3" x 3" x 1/4" ; Add $840.00 & save $100.00
2. 10" Brake w/4 way Die: ( 1/16",1/8",3/16",1/4" ); Add $820.00 & save $100.00
3. Coper/Notcher: Add $775.00 & save $100.00
4. Back Gauge: ( up to 48") Add: $180.00 & save $20.00
5. Multi Shear: (Angle 2" x 2" x 1/4",Bar 1/4" x 6" ) Rod 1/4".3/8",1/2"5/8",3/4" Square: 13/16": Add $690.00 & Save $100.00
6. Pedestal Die Table Std to 1/1/16: Add $309.00 & save $30.00
7. Pedestal die Table Oversize to 1-9/16": Add $375.00 & save $25.00
8. Pipe Notcher Housing for 1/2" to 2" Dies: Add $275.00 & save $25.00
9. Punching Gauging Table: 16" x 12 " Std Dies ;
10. Punching Gauge Table oversize dies:
11. Quick Change Punch Coupling: Add $700.00 & save $50.00
12. Rod Shear & Housing: ( 1/4" 3/8",1/2",5/8",3/4",1") Add $998.00 & save $100.00
13. Urethene Stripper Assembly: Add $455.00 & save $15.00
14. 8pce starter punch & die Set : add $245.00 save $15,00 from list price
1. Pipe Notching Dies 1/2"( schedule 40) add $330.00 & save $8.00
2. 3/4" (schedule 40) Add $354.00 &save $10.00
3. 1" (schedule 40) Add $378.00 & save $10.00
4. 1-1/4" (schedule 40) Add $400.00 & save $14,00
5. 1-1/2" ( schedule 40) Add $420.00 & save $20.00
6. 2" (schedule 40) add $464.00 & save $20.00
" GIVE US A CALL OR E-MAIL IF YOU HAVE ANY QUESTIONS"
****@msn.com Office : (***)-263-7141/Fax 7143
