Achi ir-pro infrared bga rework station xbox 360 repair

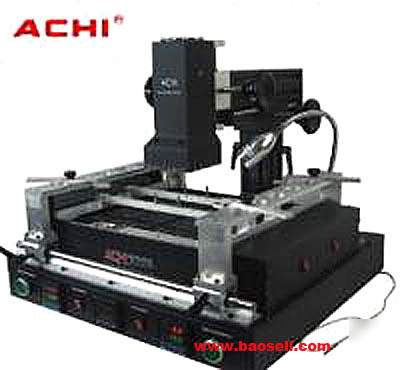

ACHI IR-PRO Infrared BGA Rework Station XBOX 360 Repair
ACHI IR-PRO BGA Rework Station is composed of upper part of IR Heating Components / Bottom Preheat Module / Lighting / Cooling Equipment / Bracket / Temperature Control Parts!
Temperature control Table is control the upper and lower heating, Can Simultaneously
heated or First preheat, then the upper part of heating.
8. Highly Sensitive K-temperature sensor
10.Up and down Left and right From Beginning to end
The parameters of IR-PRO BGA Rework station
Dimension: L475mm x W480mm x H420mm
Total weight: About 30 kg, vary with the different need of the users
Size of Upper heating:80mmx80mm
Consumption of upper heating: 400W
Size of Bottom heating:260mmx245mm
Consumption of Bottom heating: 2000W
Control mode of Upper: Independent temperature control, high-precision closed-loop
control, precision 0.5%, Alarm
Control mode of Bottom: Independent temperature control, high-precision closed-loop
control, precision 0.5%, NO Alarm
SMD: Suit for welding, remove or repair packaged devices
Such as BGA, PBGA, CSP, multi-layer substrates, EMI metallic shield product and solder/lead free Rework, welding.
Size of applicable chips: <= 80mm x 80mm
Size of applicable PCB: <= 400mm x 305mm
ACHI BGA Rework Station Performance Contrast:
Slide Guide,Abnormal Shape Bracket
